Description

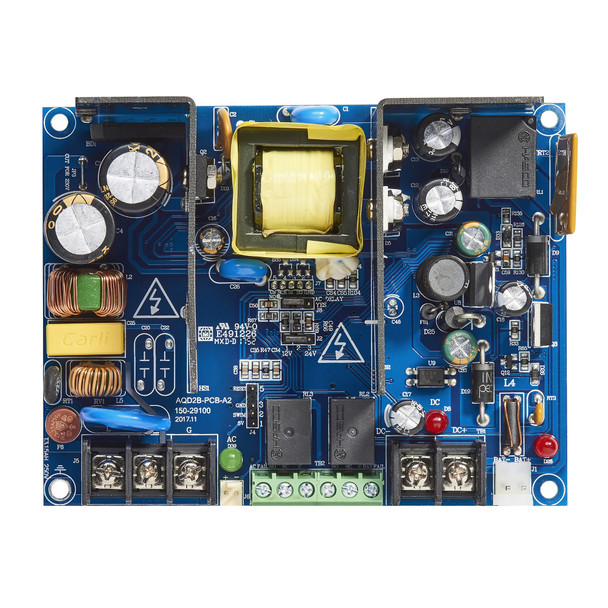

The Securitron AQD2-4C1 is a dual-voltage switching power supply designed for access control systems and electrified door hardware. It provides supervised power with integrated battery charging, delivering up to 2A at 12VDC or 1.5A at 24VDC. Built-in battery charger, low-battery disconnect, thermal shutdown protection, and circuit breaker safeguards make this ideal for facilities requiring reliable backup power and system supervision.
The AQD2-4C1 supports up to two sealed gel, AGM, or wet lead-acid batteries and tolerates universal input from 90-240VAC. It includes eight independently controlled, power-limited outputs and comes in a 14" x 9" x 3.5" cabinet. As an authorized Securitron dealer, E.D. Locks offers expert configuration guidance and fast support. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for help selecting the right battery backup solution for your access control needs.
Specifications
- Dual-voltage: 12VDC or 24VDC field selectable
- Output: 2A at 12VDC or 1.5A at 24VDC
- Continuous output: 2.8A (12V) / 1.4A (24V)
- Input: 90-240VAC universal
- Battery backup: Supports up to two sealed gel, AGM, or wet lead-acid batteries
- Outputs: Eight independently controlled, power-limited
- Cabinet: 14" x 9" x 3.5"
- Operating temperature: -4 to +104F (-20 to +40C)
- Features: Battery charger, low-battery disconnect, thermal shutdown with auto-restart, circuit breaker, supervision
- Warranty: MagnaCare lifetime replacement, no-fault
