Description

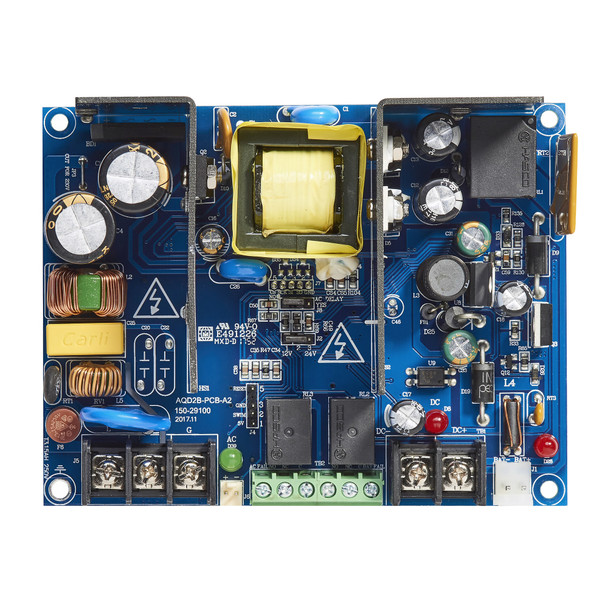

The Securitron AQD2-8C8R1 is a supervised switching power supply with integrated battery charger, designed for access control systems and electrified door hardware. It delivers 2A at 12 VDC or 1.5A at 24 VDC with eight independently controlled, power-limited outputs. Built-in battery supervision, low-battery disconnect, and thermal shutdown protection make it ideal for mission-critical security installations.
This unit accepts universal input from 90-240 VAC and supports up to two sealed gel, AGM, or lead-acid batteries. Installation fits standard 14" x 9" x 3.5" cabinet. For expert guidance on compatibility with your access control system or help selecting the right configuration, contact E.D. Locks, an authorized Securitron dealer: sales@edlocks.com or 1-877-207-6067.
Specifications
- Output: 2A at 12 VDC or 1.5A at 24 VDC (maximum)
- Continuous Output: 2.8A at 12 VDC or 1.4A at 24 VDC
- Power-Limited Outputs: Eight independently controlled
- Input: 90-240 VAC universal
- Battery Support: Up to two sealed gel, AGM, or lead-acid batteries
- Cabinet Dimensions: 14" x 9" x 3.5"
- Operating Temperature: -4F to +104F (-20C to +40C)
- Features: Battery charger, power supervision, low-battery disconnect, thermal shutdown with auto-restart, circuit breaker, LED indicators
