Description

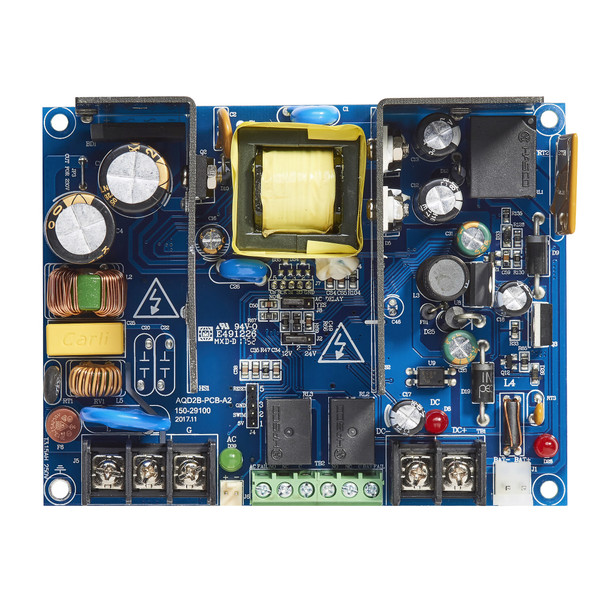

The Securitron AQD2-8F8R1 is a dual-voltage switching power supply with integrated battery charger and supervision, designed for access control systems and electrified door hardware. It delivers up to 2A at 12 VDC or 1.5A at 24 VDC with eight independently controlled, power-limited outputs. Built-in battery charging, low-battery disconnect, and thermal shutdown protection ensure reliable operation in any facility.
This field-selectable unit accepts universal input from 90-240 VAC and supports up to two sealed gel, AGM, or wet lead-acid batteries. The 14" x 9" x 3.5" cabinet includes circuit breaker overcurrent protection and form C supervision contacts. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, installation guidance, and MagnaCare warranty details.
Specifications
- Brand: Securitron
- Model: AQD2-8F8R1
- Output: 2A at 12 VDC or 1.5A at 24 VDC
- Continuous Output Rating: 2.8A at 12 VDC / 1.4A at 24 VDC
- Power-Limited Outputs: Eight independently controlled
- Input Voltage: 90-240 VAC
- Battery Support: Up to two sealed gel, AGM, or wet lead-acid batteries
- Cabinet Dimensions: 14" x 9" x 3.5"
- Operating Temperature: -4 to +104 F (-20 to +40 C)
- Features: Battery charger, low-battery disconnect, thermal shutdown with auto-restart, circuit breaker protection, LED indicators, form C contacts
- Warranty: MagnaCare lifetime replacement, no fault
