Description

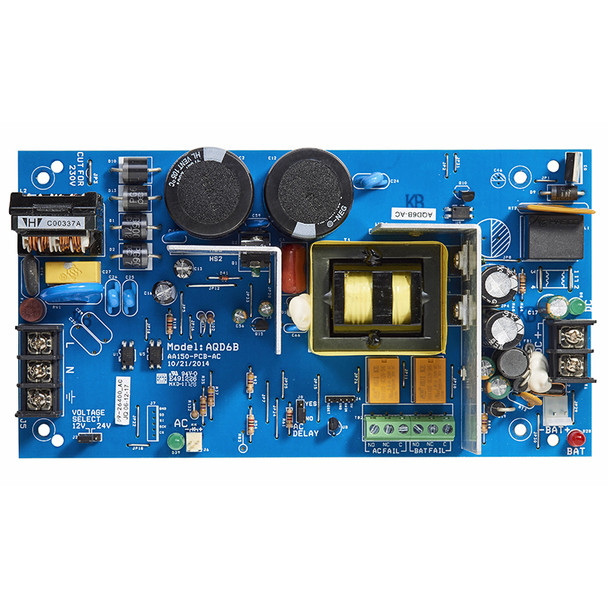

The Securitron AQD6B is a supervised switching power supply engineered for access control systems. It delivers 6A at field-selectable 12 or 24 VDC to power magnetic locks, electric strikes, card readers, sensors, and control boards. Ideal for installers and facility managers seeking reliable, centralized power with battery backup and multiple independent outputs.
The AQD6B features up to 16 Class 2 power-limited outputs, UL 294 6th Edition compliance, and supports two sealed gel, AGM, or wet lead acid batteries. Installation is straightforward with field voltage selection and expandable relay triggering options. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert system design and compatibility guidance from an authorized Securitron dealer.
Specifications
- Dual-voltage field selectable: 6A at 12 or 24 VDC continuous output
- Up to 16 independently controlled power-limited outputs
- UL 294 6th Edition certified
- Input voltage tolerance: +/- 15% of nominal
- Thermal shutdown protection with auto restart
- Circuit breaker for overcurrent and reverse battery protection
- Dedicated battery charging circuit
- Supports up to two sealed gel, AGM, or wet lead acid batteries
- Efficiency: 90% at 24V full load
- Operating temperature: -4 to +122°F [-20 to +50°C]
- MagnaCare lifetime replacement warranty
- Available with single relay or individually triggered relay outputs
