Description

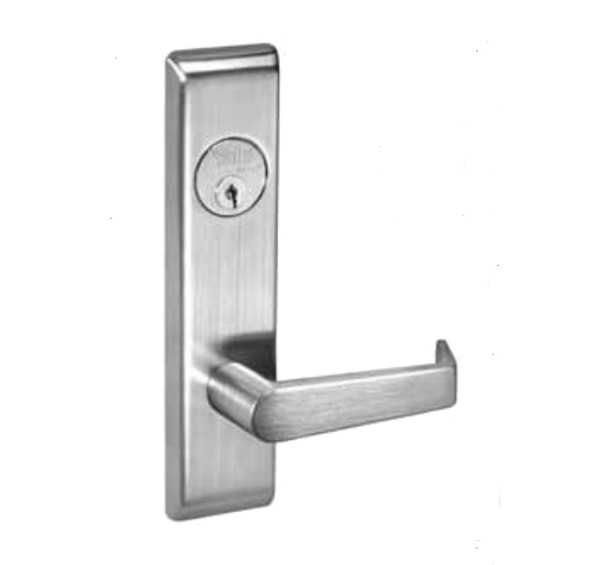

The Yale 8800 Series Mortise Lock Trim Pack (AUCN8808FL 625) delivers Grade 1 security for commercial doors. Engineered for strength and durability, this mortise lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing. Ideal for office buildings, retail, and institutional applications requiring reliable access control and long-term performance.
This trim pack fits standard 1-3/4" doors and accepts Yale's 6-pin keyed-random cylinders (two keys included). The latchbolt is field reversible, and the strike is fully adjustable. As an authorized Yale dealer, E.D. Locks provides expert technical support and consultation to ensure correct specification and installation. Contact sales@edlocks.com or call 1-877-207-6067 for assistance.
Specifications
- ANSI/BHMA A156.13 Grade 1 certified
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Cylinders: Brass, 6-pin keyed-random with 2 keys (7-pin available)
- Strike: 1-1/4" curved lip for 1-3/4" doors (other sizes to special order)
- Finishes: Available in 17 finishes
- UL/cUL fire-rated up to 3 hours
- Windstorm certified
- 10-year mechanical warranty
