Description

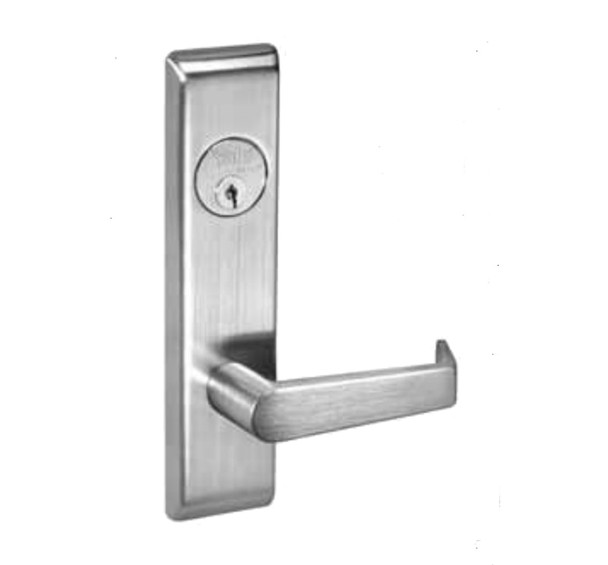

The Yale 8800 Series Mortise Lock (AUCN8809FL 626) is a commercial-grade mortise lock built for high-security applications requiring ANSI/BHMA Grade 1 certification and fire-rated performance. Ideal for office buildings, schools, and institutions, it delivers reinforced stainless steel construction and vandal-resistant trim to withstand heavy use and attempted tampering.
This lock features field-reversible handing, a 3/4-inch stainless steel latchbolt, and fits standard 1-3/4-inch doors with optional sizing for thicker installations. It comes keyed-random with two keys and includes a standard curved lip strike. As an authorized Yale dealer, E.D. Locks provides expert product guidance and competitive pricing. Contact sales@edlocks.com or call 1-877-207-6067 for specification confirmation or custom keying options.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Backset: 2-3/4 inches
- Latchbolt: 3/4-inch stainless steel throw
- Door Thickness: 1-3/4-inch standard (up to 3-1/4-inch available)
- Front: Bevel front, free-floating, adjustable 1/8-inch in 2-inch
- Cylinder: Brass, 6-pin keyed-random with two keys (7-pin available)
- Reversibility: Field reversible handing
- Strike: 1-1/4-inch curved lip for 1-3/4-inch doors (standard)
- Finish: Satin Chrome (16 additional finishes available)
- Warranty: 10-year mechanical
