Description

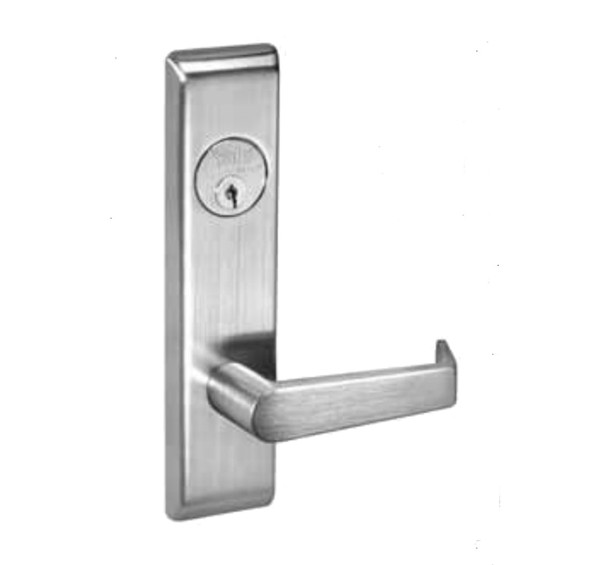

The Yale 8800 Series mortise lock delivers Grade 1 security and durability for commercial doors. Designed for high-traffic applications, this lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing for flexible installation on 1-3/4" to 3-1/4" thick doors.
This trim pack includes heavy-duty components certified ANSI/BHMA A156.13 and UL/cUL fire-rated up to 3 hours. The 3/4" stainless steel latchbolt and 6-pin keyed cylinder ensure reliable everyday performance. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility, keying options, and finish selection from our authorized dealer team.
Specifications
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (to 3-1/4" available)
- Cylinders: Brass, 6-pin, keyed-random with two keys (7-pin available)
- Fronts: Bevel front, free-floating 1/8" adjustment
- Strikes: 1-1/4" curved lip for 1-3/4" door (reversible)
- Certification: ANSI/BHMA A156.13 Grade 1, UL/cUL 3-hour fire-rated
- Warranty: 10 years mechanical
- Available Finishes: 17 standard commercial finishes
