Description

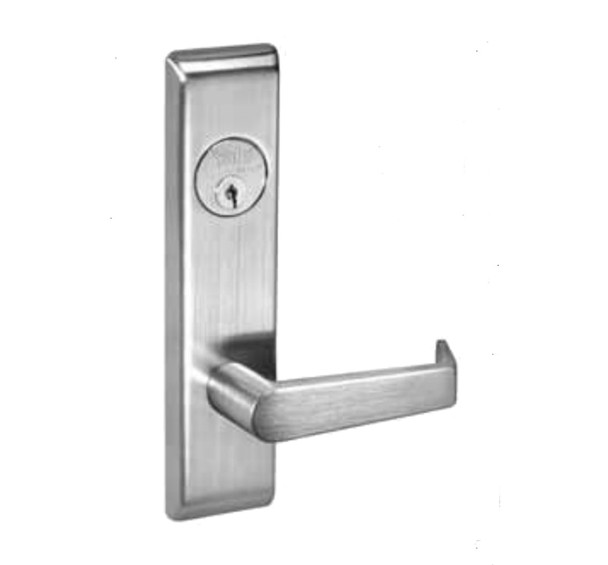

The Yale 8800 Series mortise lock trim pack is engineered for commercial doors requiring ANSI/BHMA Grade 1 security and durability. Heavy-duty stainless steel components, a reinforced deadbolt, and vandal-resistant trim deliver long-lasting performance in high-traffic applications. Quick lever handing and field-reversible design simplify installation on standard 1-3/4" doors.
This trim pack combines a 6-pin keyed-random cylinder with a curved-lip strike and bevel front for secure, flexible mounting. UL/cUL fire-rated up to 3 hours and certified for windstorm resistance. As an authorized Yale dealer, E.D. Locks provides expert specification help and a 10-year mechanical warranty. Contact sales@edlocks.com or call 1-877-207-6067 for finish options and custom door thickness requirements.
Specifications
- Brand: Yale/Accentra
- Series: 8800 Mortise Lock
- ANSI/BHMA Certification: A156.13, Grade 1
- Fire Rating: UL/cUL up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available)
- Cylinder: Brass, 6-pin, keyed-random with 2 keys
- Strike: 1-1/4" curved lip for 1-3/4" doors
- Field Reversible: Yes
- Finishes: 17 available
- Warranty: 10 years mechanical
