Description

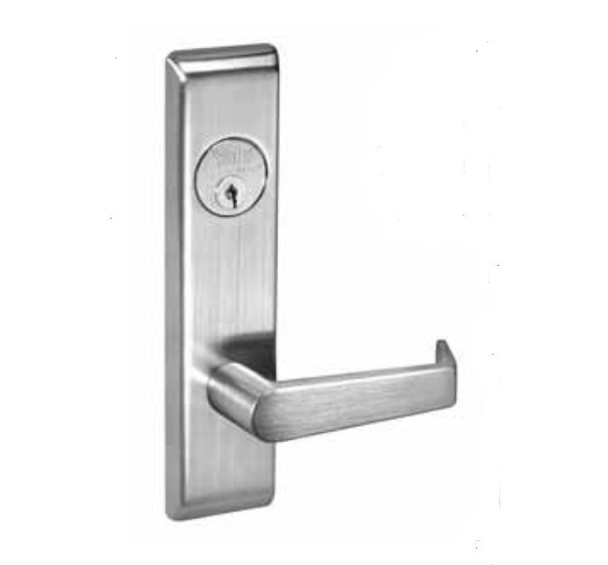

The Yale 8835FL 606 Trim Pack is a Grade 1 mortise lock assembly designed for commercial doors requiring maximum security and durability. This heavy-duty lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing to fit left or right hand doors. Ideal for high-traffic commercial applications where strength and reliability are non-negotiable.
This trim pack fits standard 1-3/4" doors and includes a 2-3/4" backrest, curved lip strike, and two keyed-random cylinders. Yale 8835FL locks are UL/cUL fire-rated up to 3 hours and certified ANSI/BHMA A156.13 Grade 1. For proper installation, keying options, and finish selection from 17 available choices, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance.
Specifications
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, up to 3-1/4" to order
- Cylinders: Brass, 6-pin, keyed-random with two keys standard; 7-pin available
- Strikes: 1-1/4" curved lip for 1-3/4" door; other lengths to special order
- Certification: ANSI/BHMA A156.13 Series 1000, Operational Grade 1
- Fire Rating: UL/cUL up to 3 hours
- Warranty: 10 year mechanical
- Field Reversible: Yes
- Available Finishes: 17 finishes
