Description

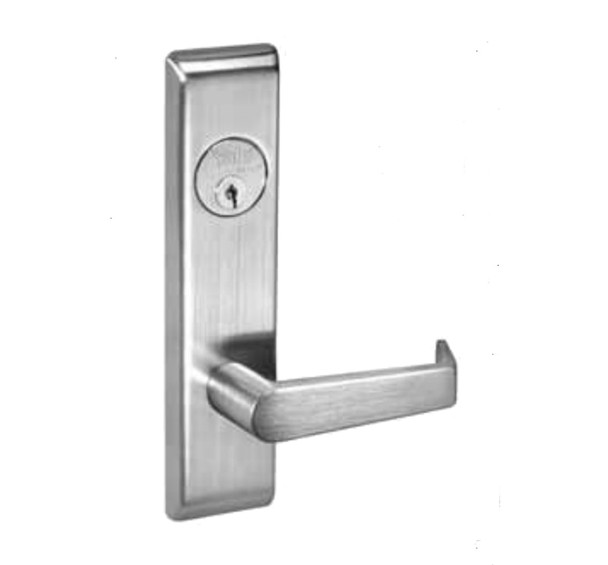

The Yale 8800 Series mortise lock trim pack delivers commercial-grade security for interior and exterior doors in offices, schools, and institutional buildings. This ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing to simplify installation and reduce callbacks.
Fits 1-3/4" standard door thickness with adjustable bevel front and includes a standard 1-1/4" curved lip strike. Backed by Yale's 10-year mechanical warranty and available in 17 finishes. An authorized E.D. Locks dealer ensures you get expert guidance on keying, handing, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for help selecting the right configuration.
Specifications
- ANSI/BHMA Grade 1, Series 1000
- UL/cUL fire rated up to 3 hours
- Windstorm certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door thickness: 1-3/4 inch standard, to 3-1/4 inch to order
- Front: Bevel front, adjustable 1/8 inch in 2 inches
- Cylinders: Brass, 6-pin keyed-random, two keys included, 7-pin available to order
- Field reversible handing
- Strike: 1-1/4 inch curved lip standard, other lengths to special order, all reversible
- Available in 17 finishes
- Warranty: 10 years mechanical
