Description

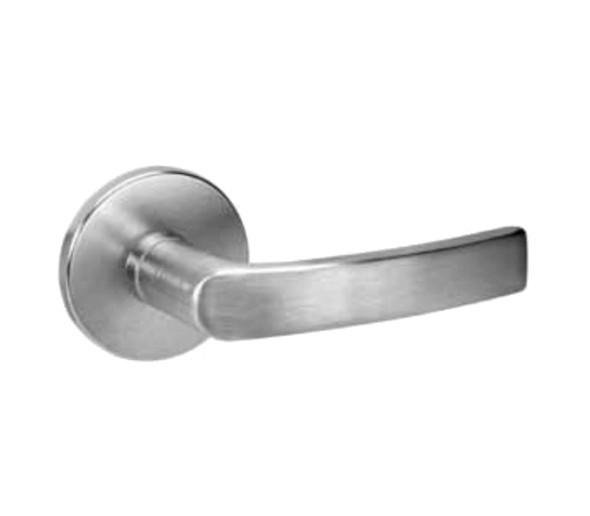

The Yale 8800 Series mortise lock trim pack (AUCN8860FL) delivers Grade 1 security for commercial doors. Designed for offices, retail, and institutional buildings, this heavy-duty lock combines a reinforced stainless steel deadbolt with vandal-resistant trim to protect against forced entry and daily wear.
Field-reversible handing and quick lever changes simplify installation on standard 1-3/4" doors. The 6-pin cylinder comes keyed random with two keys. As an authorized Yale dealer, E.D. Locks provides expert guidance on finish selection, keying options, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for help choosing the right mortise lock for your application.
Specifications
- ANSI/BHMA Grade 1, Series 1000
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard (up to 3-1/4" available)
- Cylinders: Brass, 6-pin keyed-random (7-pin available)
- Includes two keys standard
- Field reversible handing
- Strike: 1-1/4" curved lip (reversible)
- Finishes: 17 available
- UL/cUL fire rated up to 3 hours
- Windstorm certified
- 10-year mechanical warranty
