Description

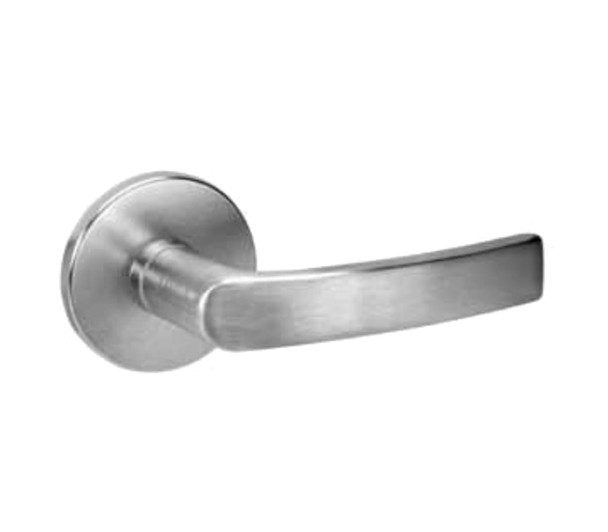

The Yale 8800 Series mortise lock is a Grade 1 rated commercial security solution for applications demanding durability and strength. Designed for doors 1-3/4" to 3-1/4" thick, this heavy-duty lock features a reinforced stainless steel deadbolt and vandal-resistant trim. Field-reversible handing and standard nonhanded strike simplify installation for facility managers and contractors.
This mortise lock is UL/cUL fire-rated up to 3 hours and backed by a 10-year mechanical warranty. The 3/4" stainless steel latchbolt and 6-pin cylinder with two keys come standard. E.D. Locks is an authorized Yale dealer; contact our experts at sales@edlocks.com or 1-877-207-6067 for keying guidance, finish selection from 17 options, and professional support.
Specifications
- ANSI/BHMA Grade 1, A156.13 Series 1000
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available)
- Mechanism: Stainless steel
- Cylinders: Brass, 6-pin keyed-random (7-pin available)
- Strikes: 1-1/4" curved lip for 1-3/4" door (other lengths to order)
- Finishes: 17 available
- Warranty: 10 years mechanical
- Fire Rating: UL/cUL up to 3 hours
