Description

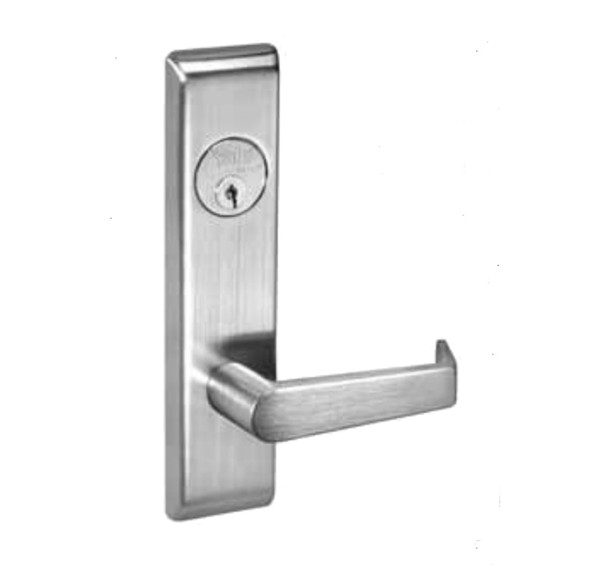

The Yale 8800 Series mortise lock delivers commercial-grade security for interior and exterior doors. Built with a reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim, this ANSI/BHMA Grade 1 certified lock is engineered for demanding commercial applications where strength and durability cannot be compromised.
Field-reversible handing and quick lever adjustment make installation straightforward on standard 1-3/4" doors. The 6-pin cylinder includes two keys; keying options and door thickness variations are available. As an authorized Yale dealer, E.D. Locks provides expert guidance on specification, installation and maintenance. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance.
Specifications
- ANSI/BHMA A156.13 Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Cylinder: Brass, 6-pin keyed-random with two keys (7-pin available)
- Strikes: 1-1/4" curved lip (reversible, other lengths available)
- Warranty: 10 year mechanical
- Finishes: 17 finishes available
