Description

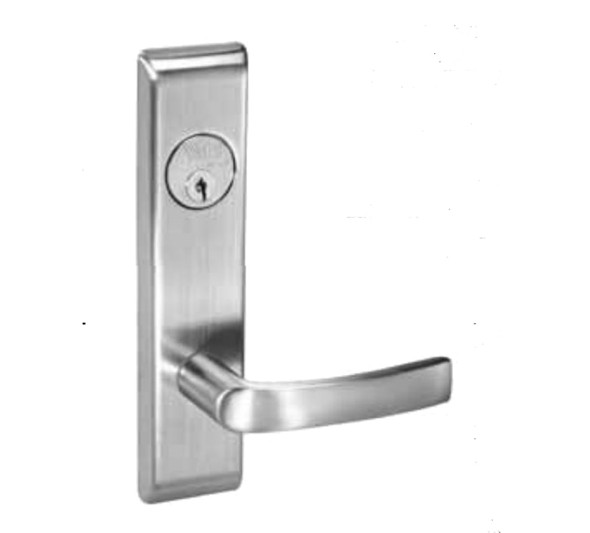

The Yale 8867 is a heavy-duty mortise lock built for commercial doors demanding ANSI/BHMA Grade 1 security and durability. Featuring a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing, this lock solves the need for reliable, long-lasting access control in high-traffic environments and institutional buildings.
This mortise lock fits standard 1-3/4" doors and accommodates thicker doors to 3-1/4" by special order. The 6-pin keyed-random cylinder includes two keys standard. Installation is straightforward with quick lever handing and standard nonhanded strike. As an authorized Yale dealer, E.D. Locks offers expert guidance on finish selection, keying options, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- ANSI/BHMA Certified A156.13, Series 1000, Operational Grade 1
- UL/cUL Fire Rated up to 3 hours
- Windstorm Certified
- Mechanism: Stainless steel
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door Thickness: 1-3/4 inches standard; up to 3-1/4 inches by special order
- Front: Bevel front, free-floating adjustment from flat to 1/8 inch standard bevel in 2 inches
- Cylinders: Brass, 6-pin keyed-random with two keys standard; 7-pin available
- Reversibility: Field reversible handing
- Strikes: 1-1/4 inch curved lip for 1-3/4 inch doors standard; other lengths by special order
- Finishes: Available in 17 finishes per Yale Commercial Finishes Chart
- Warranty: 10 years mechanical
