Description

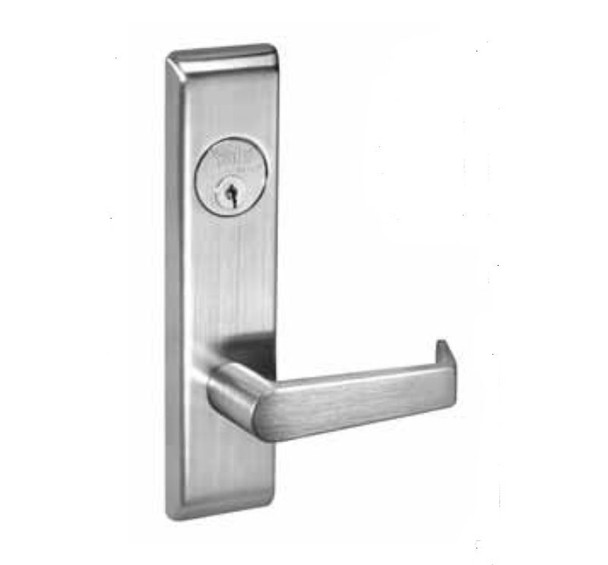

The Yale 8800 Series mortise lock delivers commercial-grade security for interior and exterior doors. Engineered for strength and durability, this ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and a 3/4 inch throw latchbolt. Ideal for schools, offices, hospitals, and multi-tenant buildings requiring dependable access control.
This mortise lock fits 1-3/4 inch standard doors with field-reversible handing and quick lever installation. It comes keyed-random with two keys and accepts 6-pin or 7-pin cylinders. For door thickness variations, custom configurations, finish selection from 17 options, or keying assistance, contact our security experts at sales@edlocks.com or call 1-877-207-6067. As an authorized Yale dealer, we provide expert guidance to ensure the right fit for your application.
Specifications
- ANSI/BHMA A156.13 Series 1000, Grade 1 Certified
- UL/cUL Fire Rated up to 3 Hours
- Windstorm Certified
- Mechanism: Stainless Steel
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch Stainless Steel Throw
- Door Thickness: 1-3/4 inch Standard (up to 3-1/4 inch to Order)
- Front: Bevel Front, Free-Floating (Adjusts Flat to 1/8 inch Bevel in 2 inch)
- Cylinder: Brass, 6-Pin Keyed-Random (7-Pin Available)
- Keys Included: Two
- Field Reversible Handing
- Strike: 1-1/4 inch Curved Lip for 1-3/4 inch Door (Other Lengths to Order)
- Available Finishes: 17 Options
- Warranty: 10 Years Mechanical
