Description

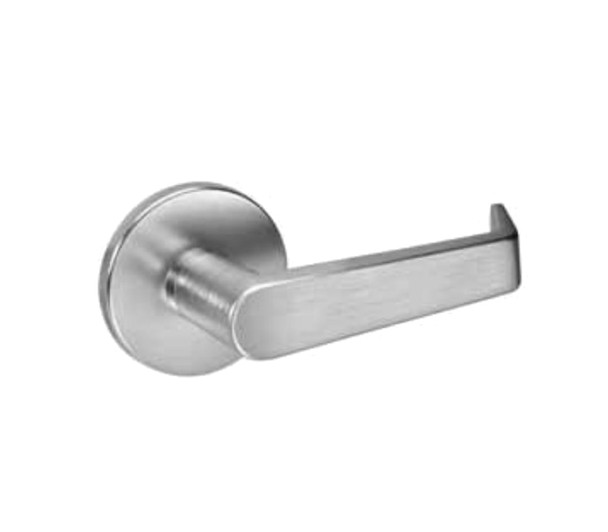

The Yale 8800 Series mortise lock is engineered for commercial doors requiring uncompromising security and durability. This Grade 1 certified lock features a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and field-reversible handing that solves installation flexibility on new and retrofit projects.
Compatible with standard 1-3/4" door thickness (up to 3-1/4" available), this trim pack includes brass cylinders with 6-pin keying and two keys. As an authorized Yale dealer, E.D. Locks provides expert configuration guidance and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for keying, finish selection, or custom door thickness requirements.
Specifications
- ANSI/BHMA A156.13 Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard (up to 3-1/4" to order)
- Bevel front: free-floating, flat to 1/8" standard bevel
- Cylinders: brass, 6-pin keyed-random (7-pin available)
- Includes two keys
- Field reversible handing
- Curved lip strike: 1-1/4" for 1-3/4" door (other lengths to order)
- Available in 17 finishes
- Warranty: 10 years mechanical
