Description

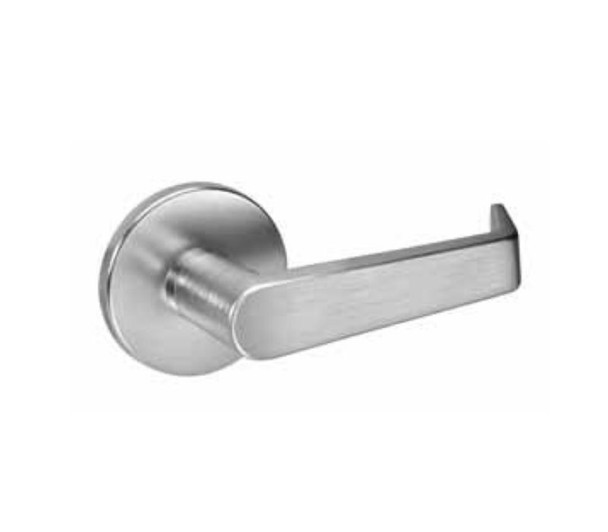

The Yale 8800 Series mortise lock trim pack is a heavy-duty commercial solution for doors requiring ANSI/BHMA Grade 1 security and reliability. Designed for applications demanding uncompromising strength, this lock features reinforced stainless steel deadbolts, vandal-resistant trim, and UL/cUL fire rating up to 3 hours, serving property managers, facility directors, and architects who need dependable perimeter security.
This trim pack is field reversible with quick lever handing and works on standard 1-3/4" doors (custom thicknesses available). It includes a 6-pin keyed-random cylinder with two keys, adjustable bevel front, and a 10-year mechanical warranty. As an authorized Yale dealer, E.D. Locks provides expert guidance on handing, finish selection from 17 options, and compatibility at sales@edlocks.com or 1-877-207-6067.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Operational Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard; up to 3-1/4" to order
- Front: Bevel front, free-floating to adjust from flat to 1/8" bevel in 2"
- Cylinder: Brass, 6-pin keyed-random with two keys; 7-pin available to order
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door; other lengths to special order; all reversible
- Finishes: Available in 17 finishes
- Warranty: 10-year mechanical
