Description

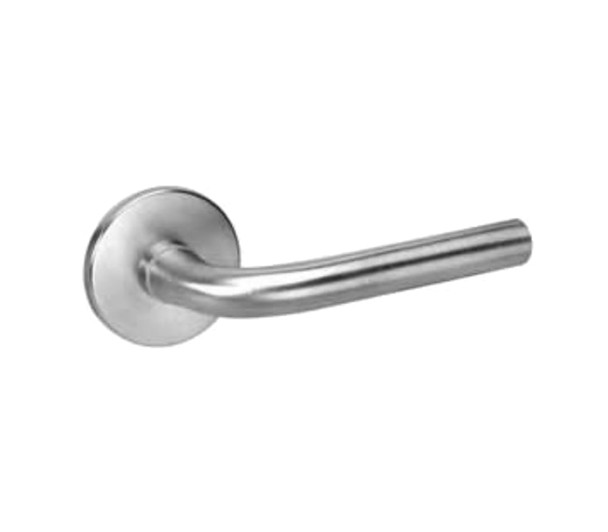

The Yale 8800 Series PNR8827FL Trim Pack is a heavy-duty mortise lock designed for commercial applications requiring maximum security and durability. Built with reinforced stainless steel components and ANSI/BHMA Grade 1 certification, it solves the need for reliable access control on high-traffic doors in offices, hospitals, schools and institutional buildings.
This trim pack fits standard 1-3/4" doors and features field-reversible handing for flexible installation. As an authorized Yale dealer, E.D. Locks provides expert guidance on finishes, keying options and compatibility. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right configuration and to learn about free shipping on orders over $450.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- UL/cUL Fire Rating: Up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (to 3-1/4" available)
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Strike: 1-1/4" curved lip for 1-3/4" door (reversible)
- Field Reversible: Yes
- Available Finishes: 17
- Warranty: 10 years mechanical
