Description

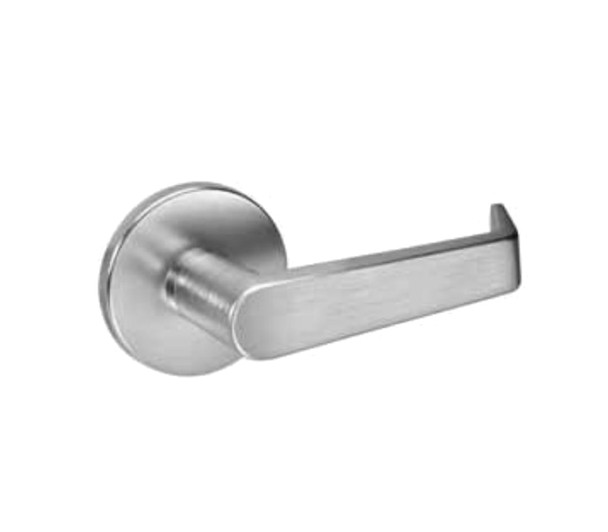

The Yale 8800 Series mortise lock trim pack delivers commercial-grade security for high-traffic doors in offices, hospitals, and institutional buildings. This ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing for flexible installation on 1-3/4" to 3-1/4" thick doors.
Compatible with standard 2-3/4" backset requirements, the 626 finish trim ships with a 6-pin keyed-random cylinder and two keys. As an authorized Yale dealer, E.D. Locks provides expert configuration guidance and rapid support at sales@edlocks.com or 1-877-207-6067 to ensure proper specification for your door type and security needs.
Specifications
- ANSI/BHMA Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard, to 3-1/4" thick doors to order
- Cylinders: Brass, 6-pin keyed-random with two keys standard
- Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door standard
- 10 year mechanical warranty
