Description

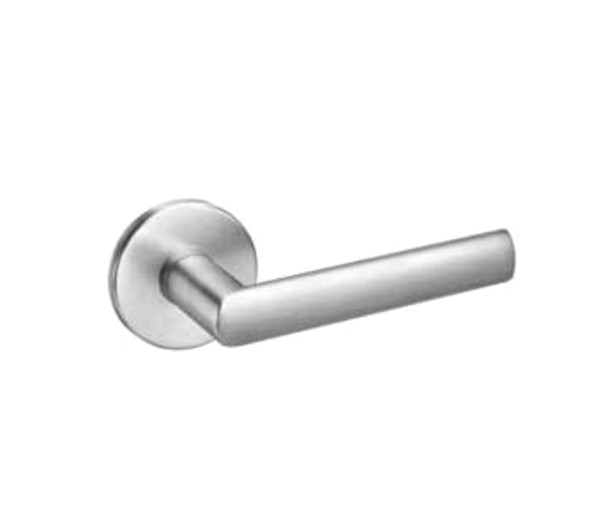

The Yale 8800 Series mortise lock trim pack (VIR8817-2FL, 626 finish) is engineered for commercial applications demanding maximum strength and security. Features a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and ANSI/BHMA Grade 1 certification. Field-reversible latchbolt and quick lever handing simplify installation on standard 1-3/4" doors.
This lock is compatible with doors up to 3-1/4" thick and includes a curved lip strike and two brass 6-pin keys. As an authorized Yale dealer, E.D. Locks provides expert guidance on handing, finish selection, and custom configurations. Contact sales@edlocks.com or call 1-877-207-6067 for technical assistance and free shipping on orders over $450.
Specifications
- ANSI/BHMA A156.13 Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard (up to 3-1/4" available)
- Front: Bevel, free-floating 1/8" adjustment
- Cylinders: 6-pin brass, keyed-random with 2 keys (7-pin available)
- Strike: 1-1/4" curved lip, all reversible
- Reversibility: Field reversible handing
- Finish: 626
- Warranty: 10 years mechanical
