Description
The Yale 8800 Series mortise lock trim pack is a commercial-grade security solution for offices, retail, and institutional buildings requiring ANSI/BHMA Grade 1 durability. This field-reversible lock features reinforced stainless steel construction, a 3/4-inch throw latchbolt, and vandal-resistant trim to withstand heavy daily use and harsh environments.

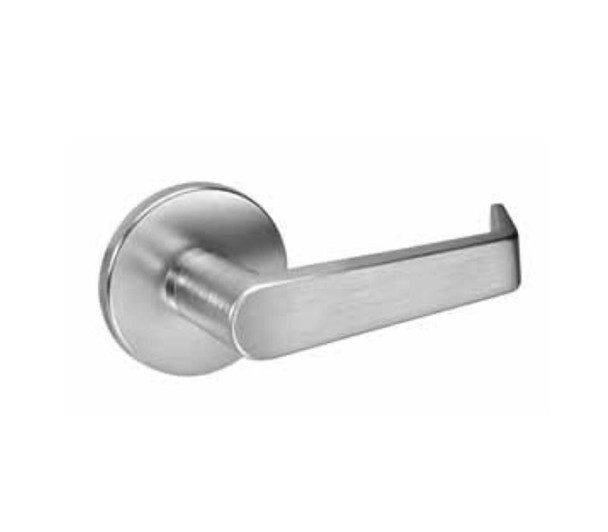

The AUR8835FL 626 trim pack fits standard 1-3/4-inch doors and accommodates thicker doors by special order. Keying includes a 6-pin brass cylinder with two keys; 7-pin cylinders are available. As an authorized Yale dealer, E.D. Locks provides expert guidance on handing, finish selection from 17 options, and installation support. Contact sales@edlocks.com or call 1-877-207-6067 for assistance.
Specifications
- ANSI/BHMA A156.13 Series 1000, Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Windstorm certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door thickness: 1-3/4 inches standard, up to 3-1/4 inches to order
- Front: Bevel front, free-floating, adjustable 1/8 inch in 2 inches
- Cylinder: Brass, 6-pin keyed-random with two keys (7-pin available)
- Field reversible handing
- Strike: 1-1/4 inch curved lip for 1-3/4 inch doors; reversible
- Available in 17 finishes
- Warranty: 10 year mechanical
