Description

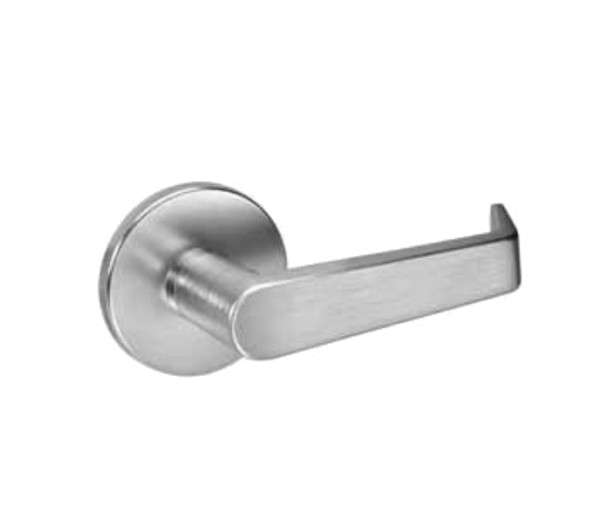

The Yale 8800 Series mortise lock trim pack delivers ANSI/BHMA Grade 1 security for high-traffic commercial doors. Built with reinforced stainless steel deadbolts and vandal-resistant trim, this lock is engineered for uncompromising strength and durability. Quick lever handing and field-reversible design make installation straightforward on standard 1-3/4" doors and thicker applications.
This trim pack includes stainless steel cylinders, keys, and reversible strike components for flexible installation. The 8800 Series is UL/cUL fire-rated up to 3 hours and certified for windstorm conditions. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility, finish selection, and keying options from an authorized Yale dealer.
Specifications
- Certification: ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- Fire Rating: UL/cUL certified up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, up to 3-1/4" available
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Front: Bevel front, free-floating (flat to 1/8" standard bevel)
- Strike: 1-1/4" curved lip for 1-3/4" door (other lengths available)
- Finishes: Available in 17 options
- Field Reversible: Yes
- Warranty: 10 years mechanical
