Description

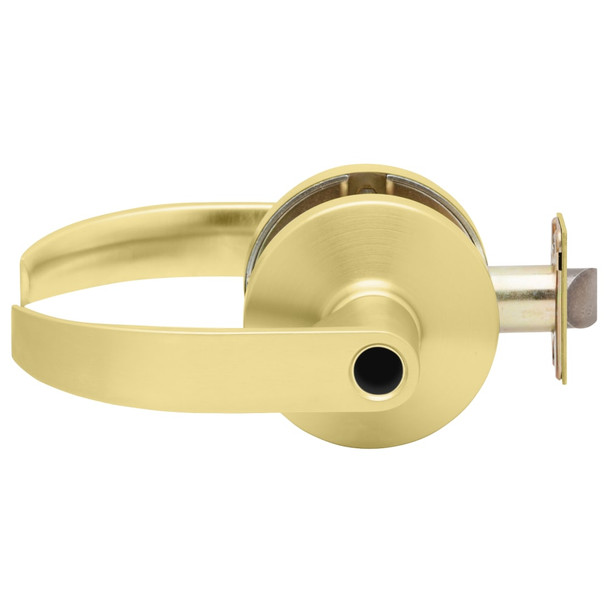

The Falcon B501LD Q 606 is a Grade 2 cylindrical lockset built for government, military, retail, industrial and multi-family applications. It combines durability with an interchangeable core design that allows quick re-keying without removing the lock from the door. Non-handed for flexible installation on left or right-hung doors.
This lockset accepts SFIC interchangeable cores and is compatible with products from other manufacturers. Standard door thickness accommodation is 1 3/8" to 2", with a 2 3/4" backset (2 3/8" available). Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying specifications, handing questions, or custom pinning options.
Specifications
- Grade 2 cylindrical lockset
- Door thickness: 1 3/8" to 2" standard
- Backset: 2 3/4" standard; 2 3/8" available
- Mechanism: Brass or cold formed steel, zinc plated and dichromated; stainless steel springs
- Attachment: Steel rose insert with two screws threading into outer rose assembly
- Handing: Non-handed
- Cylinder: 6-pin chambers, pinned in 5; 6 or 7-pin interchangeable core cylinders available
- Cylinder construction: Solid brass housings and plugs, phosphor bronze springs
- Keys: Two nickel silver keys standard
