Description

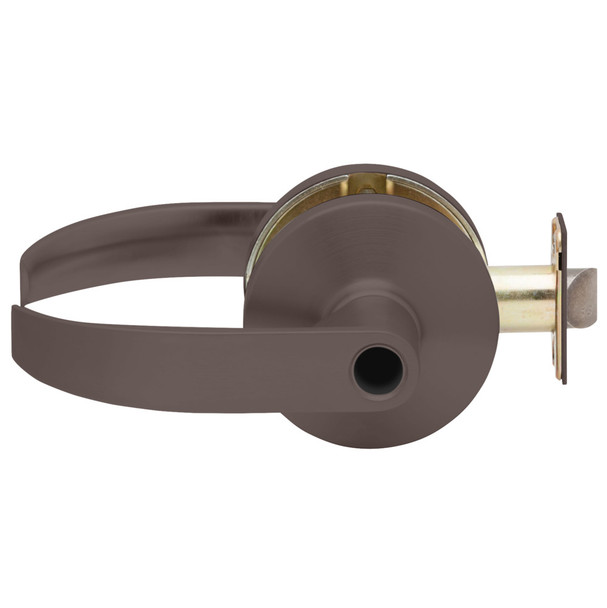

The Falcon B501LD Q 613 is a Grade 2 cylindrical lockset built for government, military, retail, industrial and multi-family applications. Its interchangeable core design enables fast re-keying without removing the lock from the door, while brass and stainless steel construction withstands heavy use in demanding environments.
This lockset fits standard door thicknesses of 1 3/8 inch to 2 inch and is compatible with SFIC products from other manufacturers. Installation is straightforward with two-screw rose attachment. As an authorized Falcon dealer, E.D. Locks offers expert guidance and keying support. Contact sales@edlocks.com or call 1-877-207-6067 for specifications, finish options, or assistance selecting the right backset for your project.
Specifications
- Grade: 2
- Door Thickness: 1 3/8 inch to 2 inch standard
- Backset: 2 3/4 inch standard, 2 3/8 inch also available
- Handing: Non-handed
- Cylinders: 6-pin chambers, pinned in 5 (6-pin pinning available at no cost)
- Interchangeable Core: Optional 6 or 7-pin SFIC cylinders available
- Materials: Brass and cold-formed steel cylinder housings, zinc plated and dichromated; stainless steel and phosphor bronze springs
- Attachment: Two screws through steel rose insert to outer rose mounting assembly
- Keys: Two nickel silver keys standard
