Description

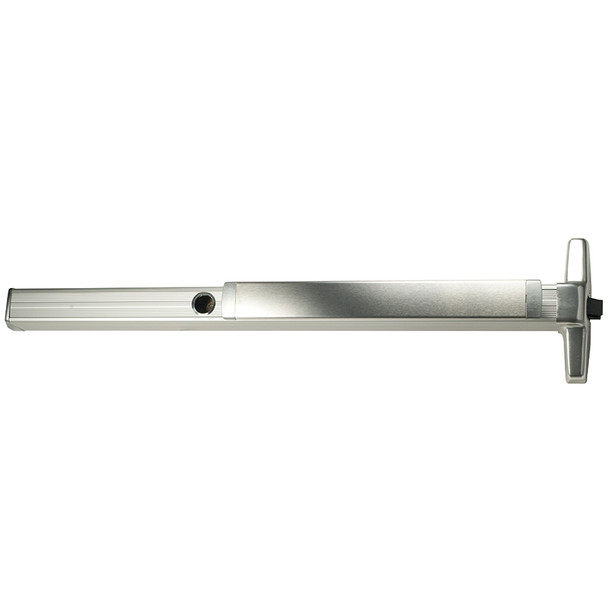

The Von Duprin CD33AEO is a UL-listed Grade 1 panic exit device designed for single and double doors with mullion support. Built to ANSI A156.3 2014 standards, it solves the critical need for reliable, code-compliant emergency egress on commercial and institutional doors while providing smooth operation and security.
This rim-mounted device fits doors 24 inches to 48 inches wide and includes a deadlocking 3/4-inch latchbolt with standard hex-key dogging. Available with electric options like latch retraction, monitor switches, and alarm kits. As an authorized Von Duprin dealer, E.D. Locks provides expert product selection and installation guidance at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Von Duprin
- Model: CD33AEO
- Grade: ANSI A156.3 ± 2014 Grade 1
- UL Listed for Panic Exit Hardware
- Device Lengths: 24 inches to 48 inches (611mm to 1219mm door width)
- Latchbolt: Deadlocking, 3/4 inch (19mm) throw
- Centerline Height: 39 13/16 inches (1011mm) from finished floor
- Center Case Dimensions: 8 3/16 x 2 13/32 x 1 9/16 inches (208 x 62 x 40mm)
- Pushbar Projection: 3 13/16 inches neutral, 3 1/16 inches depressed
- Dogging: Hex-key standard; options for CD cylinder or less dogging
- Electric Options: Latchbolt monitor, pushpad monitor, signal switch, electric latch retraction, alarm kit
- Strike: 1439 Dull Black
- Non-handed except with SS signal switch option
- Compatible with wood and metal doors
