Description

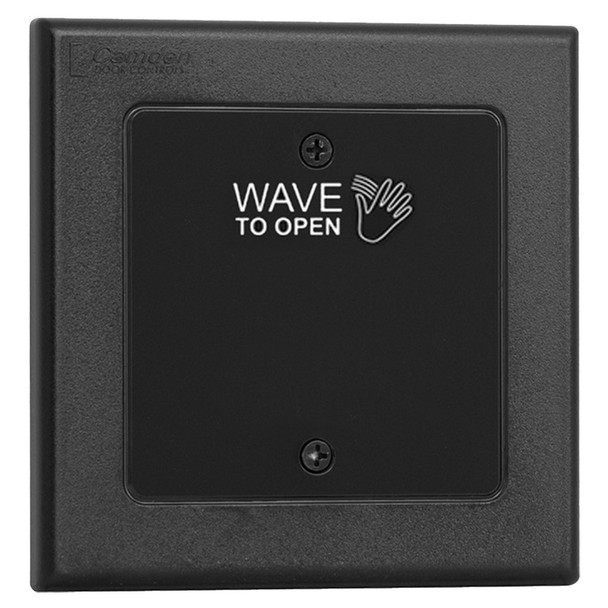

The Camden CM-324/41W is a second-generation, hands-free infrared door activation switch designed for access control and automatic door systems in new and retrofit installations. It solves the need for touchless, hygienic door operation while delivering reliable performance in high-traffic commercial and institutional environments.
This wired switch operates on 12-24V AC/DC with a 5-amp contact rating and adjustable sensing range up to 30 inches, making it compatible with most automatic door operators and access control systems. As an authorized Camden dealer, E.D. Locks provides expert installation guidance and ongoing support at sales@edlocks.com or 1-877-207-6067 to ensure optimal performance.
Specifications
- Technology: Active Infrared with Microburst Sensing
- Voltage: 12-24V AC/DC
- Contact Type: 1 SPDT Form C
- Contact Rating: 5 Amps @ 30V
- Current Draw: 60 mA
- Operating Range: 1-30 inches (25.4-762mm)
- Time Delay: 1-5 Seconds
- Operation: Selectable Fail Safe/Fail Secure
- Activation Mode: Momentary
