Description

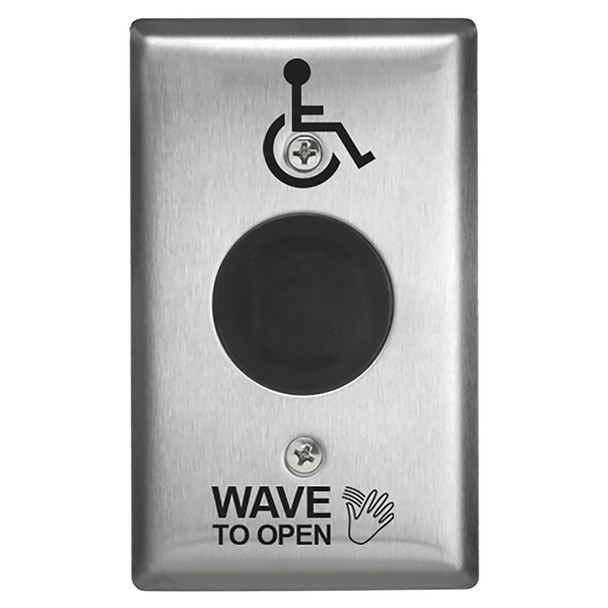

The Camden CM-331/42S is a 2nd generation hands-free infrared switch designed for access control and automatic door applications in new and retrofit installations. It solves the need for reliable, touchless door activation while maintaining superior performance in high-traffic environments where ease of use and durability matter.
This switch operates on 12-24V AC/DC and supports both wired and optional wireless connectivity via 915 MHz Lazerpoint RF spread spectrum technology. Installation is straightforward in any application, and the selectable fail-safe/fail-secure modes provide flexibility for your door control system. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility with your access control setup and system design.
Specifications
- Technology: Active Infrared with microburst sensing
- Voltage: 12-24V AC/DC
- Contact Type: 1 SPDT Form C
- Contact Rating: 3 Amps @ 30V
- Current Draw: 40 mA
- Operating Range: 1 inch to 28 inches
- Time Delay: 3-30 seconds adjustable
- Motion Sensing Modes: Momentary, Momentary with Alarm, Maintained
- Relay Operating Modes: Event, Toggle
- Wireless: Optional plug-in 915 MHz
- Input: REX, Door Contact
- Light Ring: Optional blue/green/red
