Description

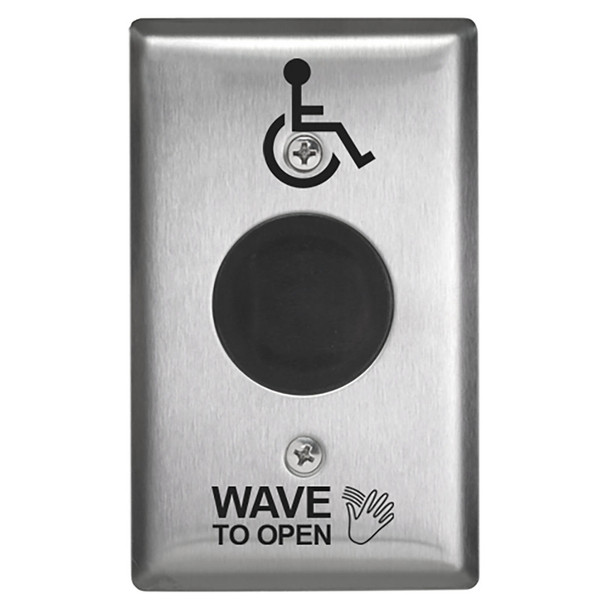

The Camden CM-333/42S is a 2nd generation hands-free infrared switch designed for automatic door activation in access control and retrofit applications. Using active infrared microburst sensing technology, it delivers reliable performance in high-traffic entries where touchless operation is essential, reducing contact points and improving accessibility.
This switch operates on 12-24V AC/DC with one SPDT Form C contact rated at 3 Amps @ 30V, adjustable range of 1 inch to 12 inches, and an optional plug-in wireless module (915 MHz Lazerpoint RF). It powers on two AA alkaline batteries (2-year life at 100 daily activations) or optional lithium batteries for extended temperature ranges. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for compatibility guidance, installation support, and expert dealer assistance.
Specifications
- Technology: Active Infrared, microburst sensing
- Voltage: 12-24V AC/DC
- Contact Type: 1 SPDT Form C
- Contact Rating: 3 Amps @ 30V
- Current Draw: 40 mA
- Wireless: Optional plug-in module, 915 MHz Lazerpoint RF Spread Spectrum
- Battery: 2 AA alkaline (-0°F to +153°F) or 2 AA lithium optional (-4°F to +153°F)
- Battery Life: 2 years at 100 activations per day (alkaline)
- Adjustable Operating Range: 1 inch to 12 inches
- Time Delay: 3-30 seconds
- Sensing Modes: Momentary, Momentary with Alarm, Maintained
- Relay Operating Mode: Event
- Input: REX, Door Contact
