Description

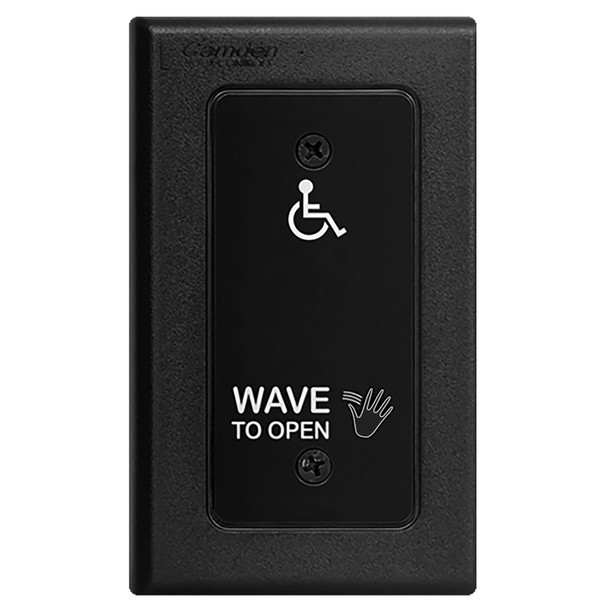

The Camden CM-333 is a second-generation hands-free infrared switch designed for automatic door and access control applications in new and retrofit installations. It solves the need for touchless, hygienic door activation while delivering easy installation, reliable performance, and years of trouble-free service in both wired and wireless configurations.
The CM-333 operates on 12-24V AC/DC power and features active infrared microburst sensing with an adjustable range of 1-12 inches. It includes one SPDT Form C relay rated at 3 Amps @ 30V, optional wireless capability (915 MHz Lazerpoint RF Spread Spectrum), and runs on two AA alkaline or lithium batteries with approximately 2-year life at 100 daily activations. As an authorized Camden dealer, E.D. Locks provides expert installation guidance and technical support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Technology: Active Infrared with microburst sensing
- Voltage: 12-24V AC/DC
- Contact Type: 1 SPDT Form C
- Contact Rating: 3 Amps @ 30V
- Current Draw: 40 mA
- Wireless: Optional plug-in (915 MHz Lazerpoint RF Spread Spectrum)
- Battery: 2 AA alkaline (-0°F to +153°F) or lithium optional (-4°F to +153°F)
- Battery Life: ~2 years at 100 activations per day
- Operating Range: 1-12 inches (25-304mm)
- Time Delay: 3-30 seconds adjustable
- Operating Modes: Momentary, Momentary with Alarm, Maintained
- Relay Mode: Event
- Input: REX, Door Contact
- Optional: Blue/Green/Red Light Ring
