Description

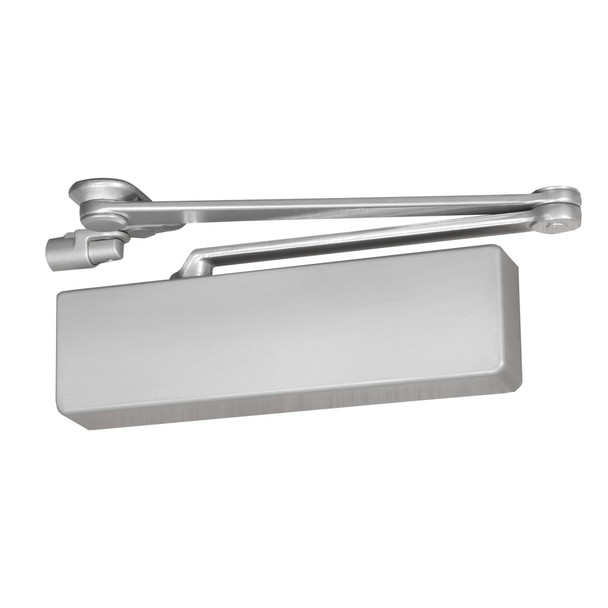

The Norton CPS7500T 689 is a heavy-duty surface-mounted door closer designed for interior and exterior doors in facilities requiring proven reliability. With a non-handed rack-and-pinion design and cast aluminum body, it delivers over 25 million cycles and independent adjustment of latch, sweep, and backcheck intensity, making it ideal for high-traffic commercial and institutional applications.
This closer is compatible with standard door frames and installs surface-mounted with minimal projection. Adjustable spring power (sizes 1-6) and hex-key-tuned valves allow precise control in temperatures from -40°F to extreme heat. As an authorized Norton dealer, E.D. Locks provides expert installation guidance and ongoing support at sales@edlocks.com or 1-877-207-6067 to ensure optimal performance and compliance.
Specifications
- Model: CPS7500T 689
- Type: Non-handed rack-and-pinion surface closer
- Body Material: Cast aluminum alloy
- Cycle Rating: Exceeds 25 million cycles
- Projection: No more than 2-3/16 inches (55mm)
- Spring Power Adjustment: Sizes 1 through 6
- Valves: Independent latch, sweep, and backcheck intensity (hex-key adjusted)
- Backcheck: Adjustable cushioning and position control
- Temperature Range: -40°F to extreme heat
- Fluid: Contains lubricity and anti-oxidation agents
- External Materials: Aluminum, brass, or stainless steel; stainless steel fasteners
- Certifications: EPD (Environmental Product Declaration) certified
