Description

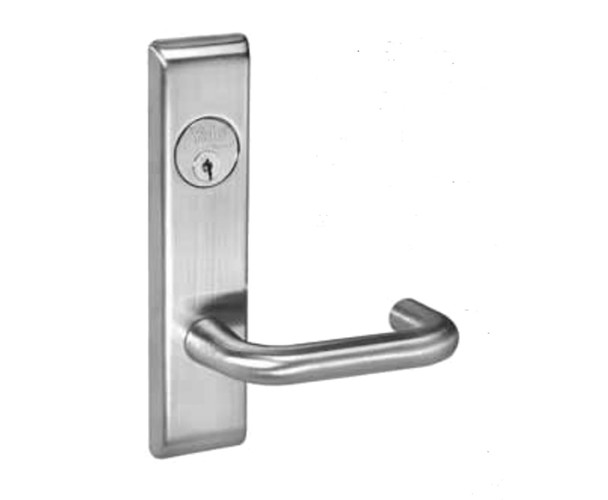

The Yale 8800 Series mortise lock delivers Grade 1 security for commercial doors requiring uncompromising strength. Designed for offices, retail, and institutional buildings, this lock combines a reinforced stainless steel deadbolt with vandal-resistant trim to protect against forced entry and wear.
Field-reversible handing and quick lever installation simplify setup on 1-3/4" standard doors. The lock includes a 6-pin brass cylinder with two keys. As an authorized Yale dealer, E.D. Locks provides expert support for finish selection, keying options, and compatibility questions. Contact sales@edlocks.com or 1-877-207-6067 for guidance.
Specifications
- ANSI/BHMA Grade 1, A156.13 Series 1000
- Mechanism: Stainless steel
- Backset: 2-3/4 inch
- Latchbolt: 3/4 inch stainless steel throw
- Door thickness: 1-3/4 inch standard (up to 3-1/4 inch to order)
- Cylinder: Brass, 6-pin keyed-random, includes two keys (7-pin available to order)
- Reversibility: Field reversible handing
- Strike: 1-1/4 inch curved lip for 1-3/4 inch door (other lengths to special order)
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
- Fire rating: UL/cUL up to 3 hours
