Description

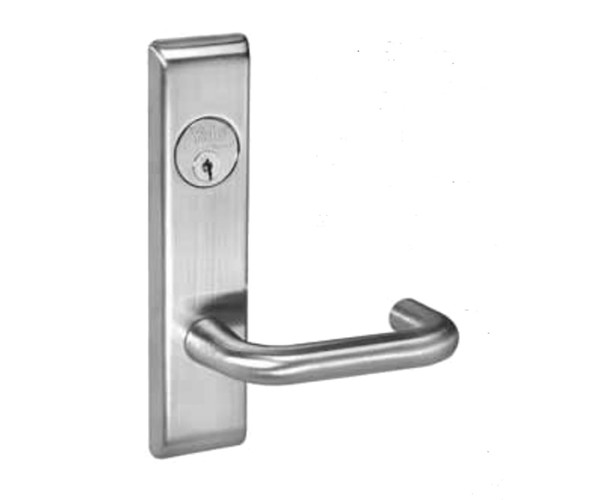

The Yale 8800 Series mortise lock trim pack is engineered for commercial doors requiring ANSI/BHMA Grade 1 security and durability. This complete trim assembly solves the need for heavy-duty locking on high-traffic entry doors, offering field-reversible handing, reinforced stainless steel components, and vandal-resistant construction suitable for institutional, office, and retail applications.
The CRCN8807FL 612 fits standard 1-3/4" doors and accommodates thicker doors up to 3-1/4" by special order. Installation is straightforward with quick lever handing and standard nonhanded strike. As an authorized Yale dealer, E.D. Locks provides expert configuration assistance and access to the full finish palette at 1-877-207-6067 or sales@edlocks.com.
Specifications
- Certification: ANSI/BHMA A156.13 Series 1000, Grade 1; UL/cUL fire rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, up to 3-1/4" by special order
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door (other lengths available)
- Finishes: 17 finishes available
- Warranty: 10 years mechanical
