Description

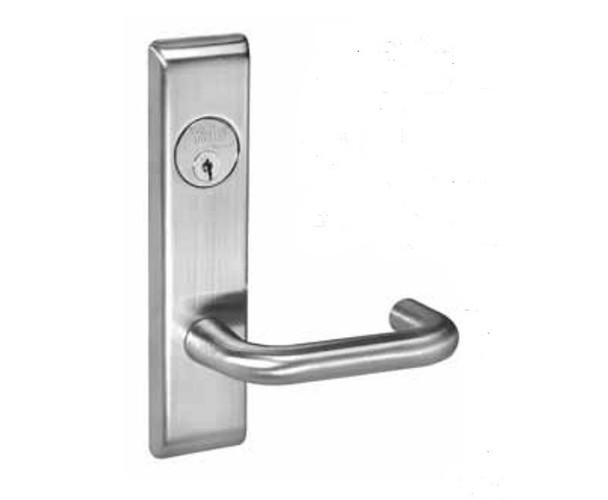

The Yale 8800 Series mortise lock combines uncompromising strength with vandal-resistant design for demanding commercial applications. This Grade 1 ANSI/BHMA certified lock features a reinforced stainless steel deadbolt, 3/4-inch throw latchbolt, and heavy-duty trim built for long-term reliability in high-traffic doors.
Field-reversible handing, quick lever installation, and standard nonhanded strike simplify setup for 1-3/4-inch doors. The lock ships with two 6-pin brass cylinders and includes a 10-year mechanical warranty. As an authorized Yale dealer, E.D. Locks provides expert guidance on keying, compatibility, and installation. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for assistance.
Specifications
- Certification: ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door Thickness: 1-3/4 inches standard
- Cylinders: 6-pin brass, keyed-random with two keys
- Strike: 1-1/4 inch curved lip, reversible
- Field Reversible: Yes
- Warranty: 10 years mechanical
