Description

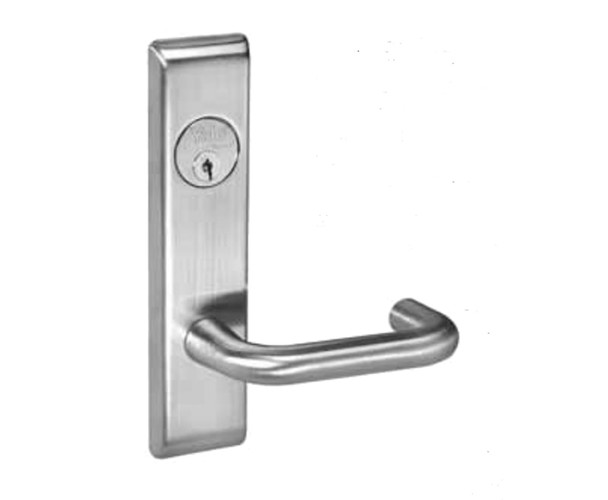

The Yale 8800 Series mortise lock delivers ANSI/BHMA Grade 1 security for high-traffic commercial doors. This heavy-duty lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing to fit left or right applications. Ideal for offices, schools, hospitals and facilities requiring dependable access control and long-term durability.
Installation is straightforward: quick lever handing, standard nonhanded strike, and adjustable bevel front simplify setup on doors 1-3/4" to 3-1/4" thick. Yale's 10-year mechanical warranty and UL/cUL fire rating (up to 3 hours) ensure lasting performance. Contact E.D. Locks for keying options, finish selection, and expert installation guidance: sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Yale/Accentra
- Model: CRCN8822FL
- Finish: 626 Satin Chrome
- ANSI/BHMA: A156.13, Series 1000, Grade 1
- UL/cUL: Fire rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" to order)
- Mechanism: Stainless steel
- Cylinder: Brass, 6-pin keyed-random with two keys (7-pin available)
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door standard
- Warranty: 10 year mechanical
