Description

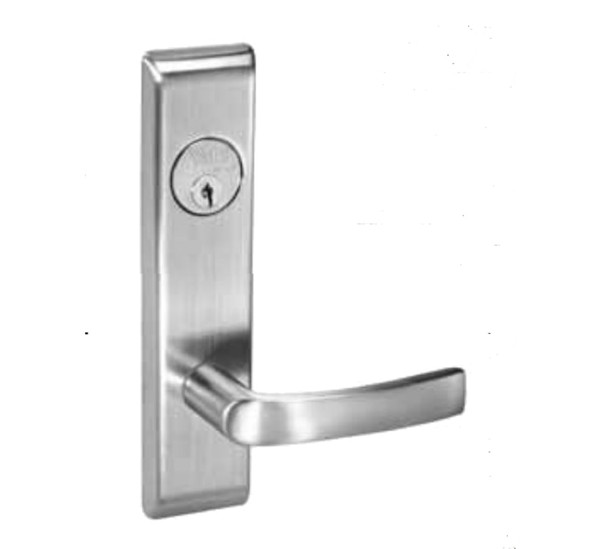

The Yale 8800 Series mortise lock (MOCN8805FL) delivers ANSI/BHMA Grade 1 security for demanding commercial applications. Its reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and 3/4-inch throw latchbolt protect offices, retail, and institutional doors from unauthorized entry and forced access.
This lock fits standard 1-3/4-inch doors and installs with field-reversible handing, adjustable bevel front, and a non-handed strike for maximum flexibility. UL/cUL fire-rated to 3 hours. Comes keyed-random with two keys; 7-pin cylinders available. Contact our experts at sales@edlocks.com or 1-877-207-6067 for finish selection, keying options, and installation support backed by Yale Commercial's 10-year warranty.
Specifications
- ANSI/BHMA Certified: A156.13, Series 1000, Grade 1
- UL/cUL: Fire rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door Thickness: 1-3/4 inches standard; to 3-1/4 inches to order
- Front: Bevel front, free-floating, adjustable 0 to 1/8 inch
- Cylinders: 6-pin keyed-random (two keys standard); 7-pin available to order
- Handing: Field reversible
- Strike: 1-1/4 inch curved lip for 1-3/4 inch door (standard); reversible; other sizes to special order
- Finishes: 17 finishes available
- Warranty: 10 years mechanical
