Description

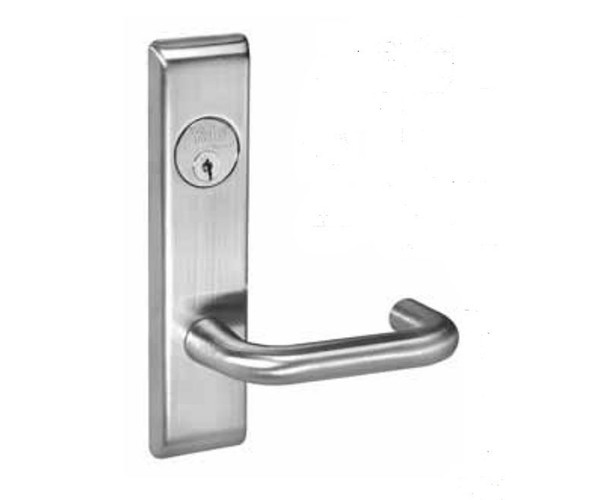

The Yale 8800 Series mortise lock (CRCN8823FL 626) delivers Grade 1 security for commercial doors. Engineered for uncompromising strength and durability, this heavy-duty lock features a reinforced stainless steel deadbolt and vandal-resistant trim. Ideal for high-traffic facilities, schools, offices and buildings that demand long-term reliability and ANSI/BHMA certification.
Field reversible handing and quick lever installation simplify setup for 1-3/4" standard doors. The lock accepts 6-pin keyed-random cylinders (two keys included); 7-pin upgrades available. UL/cUL fire-rated to 3 hours. For expert sizing, finish selection, keying or compatibility questions, contact our authorized Yale dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- ANSI/BHMA A156.13 Grade 1 certified
- UL/cUL fire-rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard (up to 3-1/4" available)
- Mechanism: Stainless steel
- Cylinders: Brass, 6-pin keyed-random (7-pin available)
- Strikes: 1-1/4" curved lip reversible (other sizes available)
- Field reversible handing
- 17 finishes available
- 10-year mechanical warranty
