Description

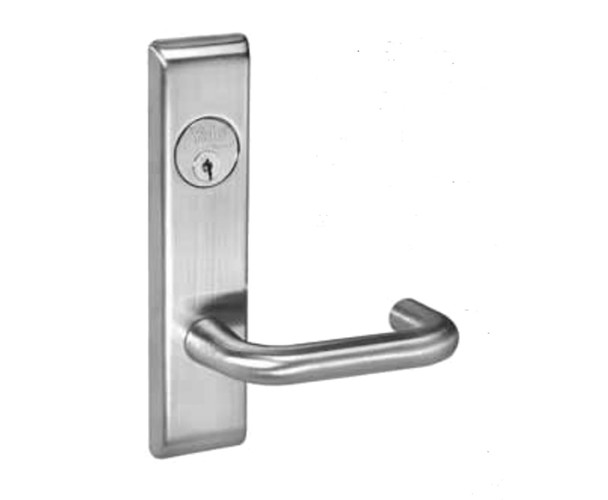

The Yale 8800 Series mortise lock delivers ANSI/BHMA Grade 1 security for commercial doors requiring uncompromising strength and durability. This heavy-duty lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing to fit left or right applications on standard and thick doors alike. Ideal for offices, schools, and facilities demanding long-life performance.
Installation is straightforward with quick lever handing and a standard nonhanded strike. The lock fits doors 1-3/4" to 3-1/4" thick and includes two 6-pin keys. As an authorized Yale dealer, E.D. Locks provides expert guidance on keying options, finish selection, and compatibility. Call 1-877-207-6067 or email sales@edlocks.com for personalized support and to confirm your specifications before ordering.
Specifications
- Brand: Yale/Accentra
- Model: CRCN8824FL
- Series: 8800 Mortise Lock
- Certification: ANSI/BHMA A156.13 Series 1000, Grade 1; UL/cUL fire rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Mechanism: Stainless steel
- Front: Bevel front, free-floating, adjusts 1/8" in 2"
- Cylinders: Brass, 6-pin keyed-random with two keys standard (7-pin available to order)
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door standard (other lengths to order); all reversible
- Warranty: 10 years mechanical
- Available Finishes: 17 finishes
