Description

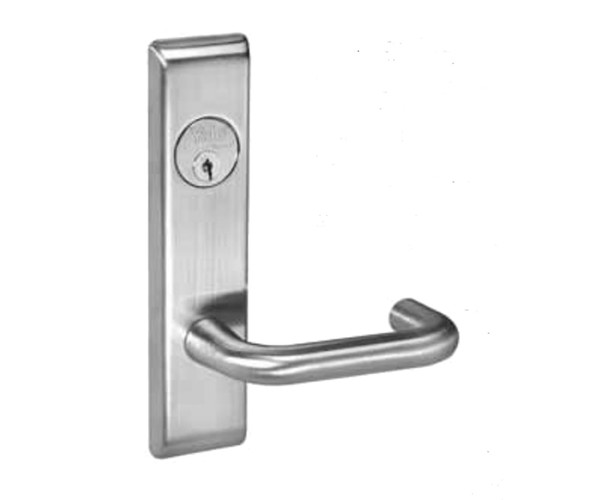

The Yale 8800 Series mortise lock trim pack is a heavy-duty commercial solution for applications demanding uncompromising strength and security. Designed for doors up to 3-1/4 inches thick, this Grade 1 ANSI/BHMA certified lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing to simplify installation across diverse building types and configurations.
This trim pack is compatible with standard 1-3/4 inch doors and includes a curved lip strike, 6-pin brass cylinder with two keys, and a 10-year mechanical warranty. As an authorized Yale dealer, E.D. Locks provides expert guidance on finish selection, keying options, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support and fast shipping on orders over $450.
Specifications
- ANSI/BHMA Grade 1, Series 1000 certified
- UL/cUL fire rated up to 3 hours
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door thickness: 1-3/4 inch standard (up to 3-1/4 inch available)
- Cylinder: 6-pin brass, keyed-random with two keys (7-pin available)
- Strike: 1-1/4 inch curved lip for 1-3/4 inch door
- Field reversible handing
- Available in 17 finishes
- 10-year mechanical warranty
