Description

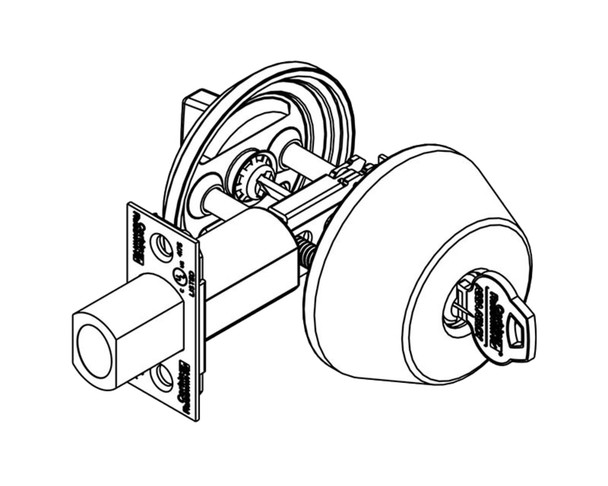

The Corbin Russwin DL2211 606 is a Grade 2 certified cylindrical deadlock designed for commercial and institutional doors. It features a solid steel deadbolt with a hardened, free-spinning steel pin insert and a 1-inch throw, making it ideal for medium-security applications where reliable, easy installation is required.
Standard for 1-3/4-inch door thickness with a 2-3/4-inch backset, this deadlock is non-handed and comes with a brass or stainless steel front. It accepts master keying and security cylinder options. As an authorized Corbin Russwin dealer, E.D. Locks offers expert guidance on handing, keying, and compatibility. Contact us at sales@edlocks.com or 1-877-207-6067 for specification details and to discuss your security needs.
Specifications
- Grade 2 certified to ANSI/BHMA 156.5
- Door thickness: 1-3/4 inch standard (optional sizes available)
- Backset: 2-3/4 inch standard (2-3/8 inch optional)
- Deadbolt throw: 1 inch
- Front: 2-1/4 inch x 1-1/8 inch (brass or stainless steel standard)
- Cylinder: 6-pin, L4 keyway, 0-bitted brass standard
- Strike: 2-3/4 inch x 1-1/8 inch standard
- Handing: Non-handed
- Keys: Two nickel silver standard
- Warranty: One-year limited
