Description

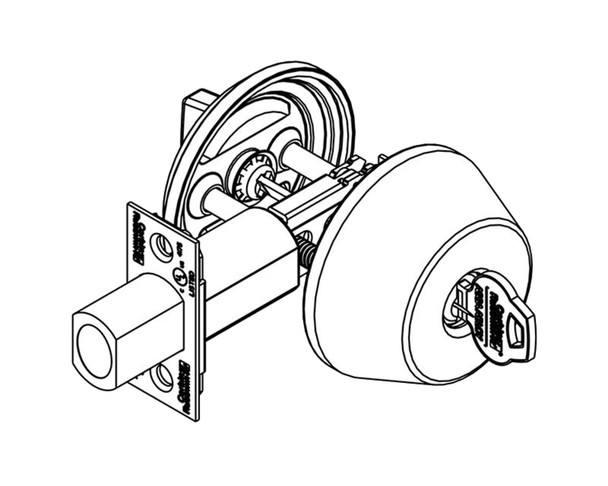

The Corbin Russwin DL2211 613 is a Grade 2 certified cylindrical deadlock designed for commercial and institutional doors. It features a solid steel deadbolt with a hardened, free-spinning steel pin insert and 1-inch throw, solving security needs for standard 1-3/4-inch doors. Non-handed design offers flexible installation across your facility.
This lock is compatible with standard 2-3/4-inch backset and brass or stainless steel fronts. It ships with two nickel silver keys and supports master keying options. As an authorized Corbin Russwin dealer, E.D. Locks provides expert guidance on keying, finish selection, and optional configurations. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Grade: 2 (ANSI/BHMA 156.5)
- Deadbolt throw: 1 inch, solid steel
- Standard door thickness: 1-3/4 inch (44mm)
- Standard backset: 2-3/4 inch (70mm); optional 2-3/8 inch (60mm)
- Front: Standard brass or stainless steel, 2-1/4 inch x 1-1/8 inch
- Strike: 2-3/4 inch x 1-1/8 inch
- Cylinder: 6-pin, L4 keyway, brass, 0-bitted standard
- Handing: Non-handed
- Keys included: Two nickel silver
- Keying options: Master keying, construction master keying, security, visual and concealed key control
- Warranty: One-year limited
