Description

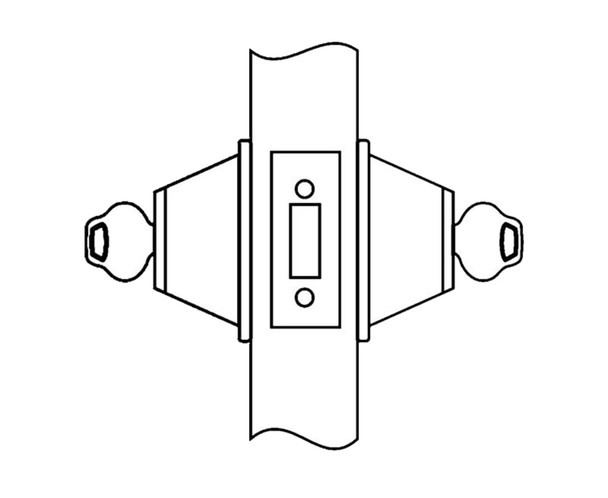

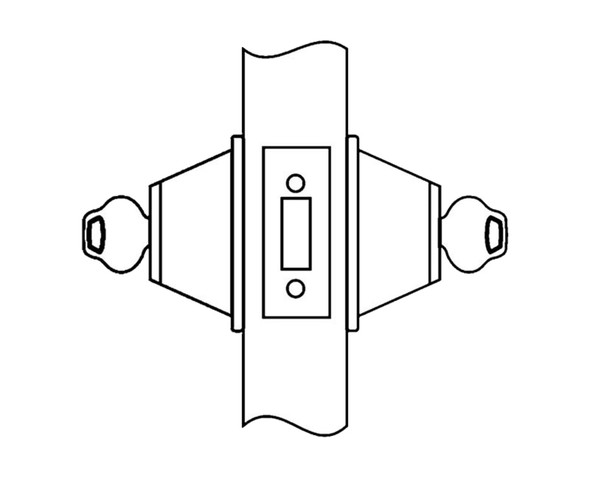

The Corbin Russwin DL3012 613 LC is a non-handed deadlock designed for standard 1-3/4" and 2-1/4" doors. Built with a hardened steel bolt offering a 1" throw, this lock delivers reliable security for commercial and institutional applications where simple, field-proven hardware is essential.
The DL3012 accommodates flat and beveled doors, with standard 2-3/4" backset and optional 2-3/8" configuration. As an authorized Corbin Russwin dealer, E.D. Locks offers expert keying options, master key coordination, and detailed installation support. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for custom keying, security upgrades, or fast delivery on your next project.
Specifications
- Handing: Non-handed
- Door Thickness: 1-3/4" (44mm) or 2-1/4" (57mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front: Wrought brass or bronze, 2-1/4" x 1-1/8"
- Deadbolt: 1" throw, 5/8" wide x 3/4" high
- Strike: 2-3/4" x 1-1/8" standard
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted
- Keys: Two nickel silver
- Keying Options: Master keying, construction master keying, 7-pin conventional, interchangeable core (IC), security cylinders, visual or concealed key control
- Warranty: One-year limited
