Description

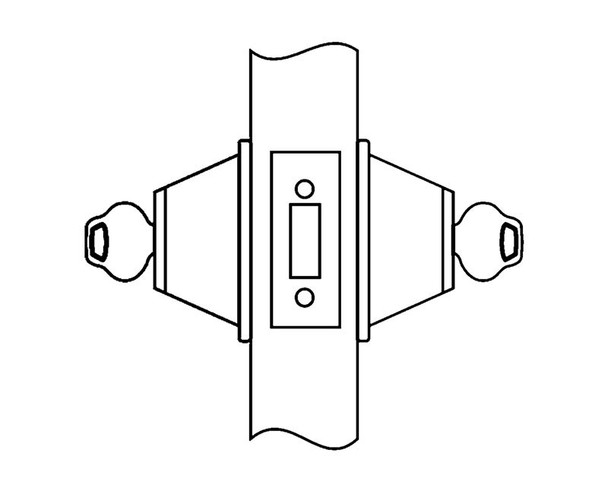

The Corbin Russwin DL3012 626 is a non-handed deadlock designed for standard 1-3/4" to 2-1/4" door thicknesses. Built for commercial and institutional applications, this deadlock provides reliable security where consistent keying and field reversibility matter. Its 1" hardened steel throw and 6-pin cylinder deliver dependable performance on flat and beveled doors.
The DL3012 accommodates 2-3/4" standard backset with optional 2-3/8" spacing available. It ships with two nickel silver keys and accepts master keying, interchangeable core, and security cylinder options. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration guidance at sales@edlocks.com or 1-877-207-6067 to ensure your lock meets project requirements.
Specifications
- Brand: Corbin Russwin
- Model: DL3012 626 B238
- Handing: Non-handed (field reversible)
- Door Thickness: 1-3/4" to 2-1/4" standard
- Backset: 2-3/4" standard; 2-3/8" optional
- Front: Wrought brass or bronze, 2-1/4" x 1-1/8"
- Deadbolt: Zinc diecast hardened steel, 1" throw
- Cylinder: Brass, 6-pin, L4 keyway
- Keys: Two nickel silver standard
- Keying Options: Master keying, interchangeable core, security cylinder
- Warranty: One-year limited
