Description

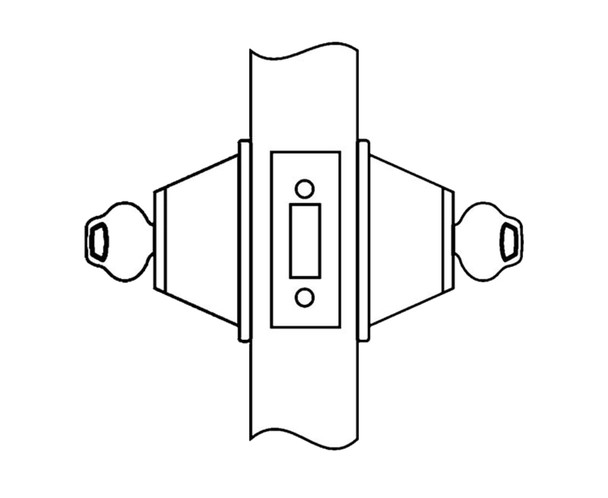

The Corbin Russwin DL3012 626 is a non-handed deadlock designed for standard 1-3/4" to 2-1/4" doors. Built for commercial and institutional facilities, this zinc diecast deadbolt with 1" throw provides reliable keyed security on flat or beveled doors, solving access control needs across offices, schools, and public buildings.
The DL3012 features a brass 6-pin cylinder with L4 keyway and ships with two nickel silver keys. Standard 2-3/4" backset and wrought brass or bronze front accommodate most door frames. Master keying, interchangeable core, and security cylinder options are available. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert keying consultation and installation guidance.
Specifications
- Handing: Non-handed (except DL3017, which is handed and field reversible)
- Door Thickness: Standard 1-3/4" (44mm) or 2-1/4" (57mm); optional sizes available
- Backset: Standard 2-3/4" (70mm); optional 2-3/8" (60mm)
- Front: Wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm)
- Deadbolt: Zinc diecast hardened steel insert, 1" throw, 5/8" wide x 3/4" high
- Strike: Standard 2-3/4" (70mm) x 1-1/8" (29mm); optional strikes and wrought boxes available
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted
- Keys: Two nickel silver standard
- Keying Options: Master keying, construction master keying, 7-pin conventional, interchangeable core, security, visual key control, concealed key control, pyramid
- Warranty: One-year limited
