Description

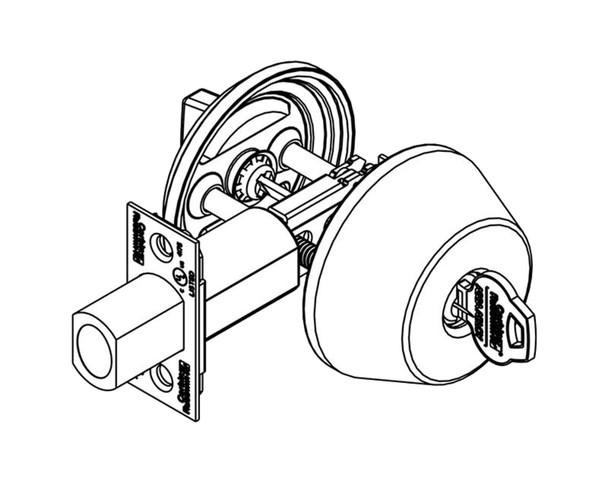

The Corbin Russwin DL3211 605 is a Grade 1 cylindrical deadlock built for high-security commercial and institutional applications. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1" throw, it delivers reliable access control where security matters most. Ideal for offices, hospitals, schools, and government buildings.
Standard 1-3/4" door thickness with optional sizes available; 2-3/4" backset standard with 2-3/8" option. Non-handed design fits left or right swing doors. Includes brass cylinder with L4 keyway, two nickel silver keys, and standard strike. Master keying and security cylinders are available. Contact E.D. Locks authorized specialists at sales@edlocks.com or 1-877-207-6067 for expert keying configuration and installation support.
Specifications
- Security Grade: ANSI/BHMA 156.5 Grade 1
- Deadbolt: Solid steel, 1" throw, hardened free-spinning pin insert
- Door Thickness: 1-3/4" standard (44mm); optional thicknesses available
- Backset: 2-3/4" standard (70mm); 2-3/8" optional (60mm)
- Front Plate: 2-1/4" x 1-1/8" brass or stainless steel
- Cylinder: 6-pin L4 keyway, brass standard; security cylinder optional
- Handing: Non-handed
- Keys: Two nickel silver included
- Strike: Standard 2-3/4" x 1-1/8"; optional strikes available
- UL Listed: Fire-rated door compatible
- Keying: Master key capable; visual and concealed key control options
- Warranty: One-year limited
