Description

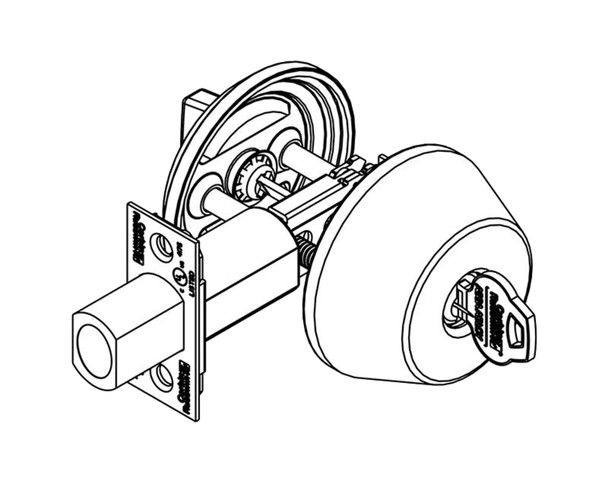

The Corbin Russwin DL3211 613 is a Grade 1 cylindrical deadlock built for high-security applications requiring maximum durability. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1-inch throw, this non-handed lock suits offices, commercial buildings, and institutional facilities needing ANSI 156.5 Grade 1 certification and UL fire-rated door compatibility.
Standard 1-3/4-inch door thickness with optional sizes available; 2-3/4-inch backset standard (2-3/8-inch optional). Includes brass or stainless steel front, standard strike, and 6-pin L4 keyway cylinder. Master keying and security cylinders are available. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration guidance and keying support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: ANSI 156.5 Grade 1
- Deadbolt: Solid steel with hardened, free-spinning steel pin insert
- Throw: 1 inch
- Handing: Non-handed
- Door Thickness Standard: 1-3/4 inches (44mm)
- Backset Standard: 2-3/4 inches (70mm); Optional: 2-3/8 inches (60mm)
- Front: Brass or stainless steel, 2-1/4 inches (57mm) x 1-1/8 inches (29mm)
- Cylinder: 6-pin, L4 keyway, 0-bitted brass standard
- Strike: 2-3/4 inches (70mm) x 1-1/8 inches (29mm)
- Keys: Two nickel silver
- UL Listed: Fire-rated doors
- Warranty: One-year limited
