Description

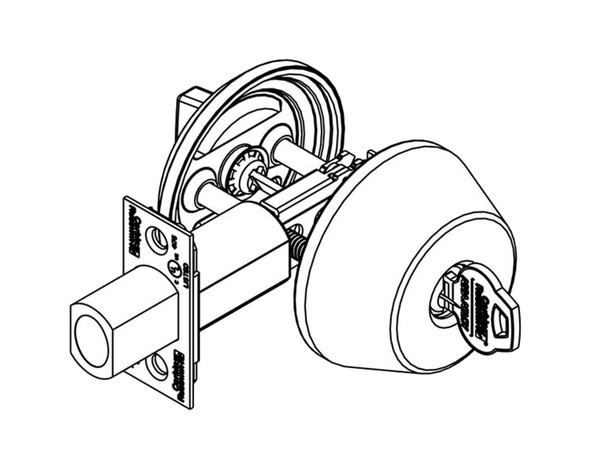

The Corbin Russwin DL3211 is a Grade 1 certified cylindrical deadlock built for high-security applications requiring durability and reliability. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1 inch throw, it solves the need for commercial-grade door security on standard 1-3/4 inch thick doors. Ideal for offices, institutions, and facilities demanding ANSI 156.5 Grade 1 compliance and UL listing for fire-rated doors.
This non-handed lock installs to standard 161 door prep with your choice of 2-3/4 inch or 2-3/8 inch backset. The 6-pin brass cylinder comes 0-bitted and keyed to two nickel silver keys; master keying and security cylinders are available. As an authorized Corbin Russwin dealer, E.D. Locks provides expert installation guidance and keying support. Contact sales@edlocks.com or call 1-877-207-6067 for assistance selecting the right configuration.
Specifications
- Grade: ANSI 156.5 Grade 1
- Door Thickness: 1-3/4 inch standard (44mm); optional thicknesses available
- Backset: 2-3/4 inch (70mm) standard; 2-3/8 inch (60mm) optional
- Deadbolt: 1 inch throw, solid steel with hardened, free-spinning steel pin insert
- Front Plate: 2-1/4 inch x 1-1/8 inch brass or stainless steel
- Cylinder: 6-pin brass, L4 keyway, 0-bitted
- Keys: Two nickel silver standard
- Strike: 2-3/4 inch x 1-1/8 inch standard
- Handing: Non-handed
- UL Listed: Yes, for fire-rated doors
- Keying: Master keying and security options available
- Warranty: One-year limited
