Description

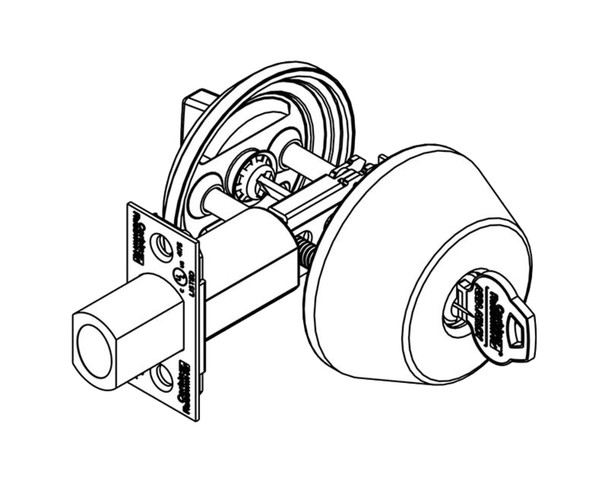

The Corbin Russwin DL3211 612 CL7 is a Grade 1 cylindrical deadlock engineered for high-security applications requiring reliable bolt strength. It features a solid steel deadbolt with a hardened, free-spinning steel pin insert and 1-inch throw. Ideal for commercial and institutional doors, it meets ANSI/BHMA A156.5 Grade 1 standards and is UL-listed for fire-rated doors, making it a trusted choice for demanding environments.
This deadlock installs on standard 1-3/4-inch door thickness with a 2-3/4-inch backset and 161 door prep. The 6-pin brass cylinder comes 0-bitted and accepts master keying, construction keying, and security key control options. As an authorized Corbin Russwin dealer, E.D. Locks provides expert guidance on compatibility, keying options, and installation support. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Grade: ANSI/BHMA A156.5 Grade 1
- Door Thickness: 1-3/4 inches standard; optional thicknesses available
- Backset: 2-3/4 inches standard; 2-3/8 inches optional
- Deadbolt Throw: 1 inch
- Front: Brass or stainless steel, 2-1/4 x 1-1/8 inches
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted
- Strike: Standard 2-3/4 x 1-1/8 inches
- Handing: Non-handed
- Keys: Two nickel silver standard
- UL Listed: Fire-rated doors
- Warranty: One-year limited
