Description

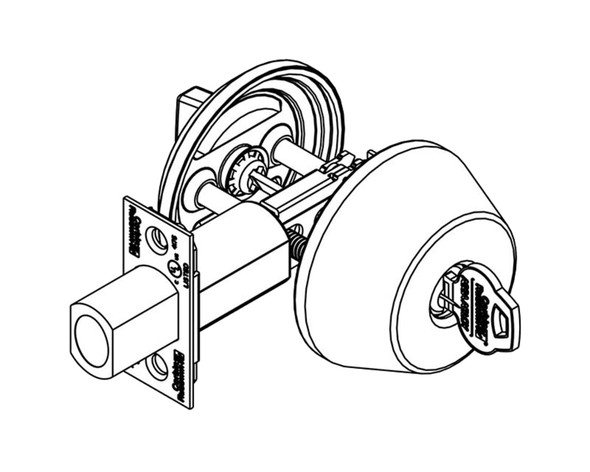

The Corbin Russwin DL3211 613 CL7 is a Grade 1 cylindrical deadlock built for high-security applications requiring ANSI 156.5 certification. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1-inch throw, this non-handed lock suits office buildings, commercial facilities, and institutional properties where durability and security matter most.
Standard 1-3/4-inch door thickness with optional sizes, 2-3/4-inch backset, and UL listing for fire-rated doors ensure broad compatibility. Includes brass front, standard strike, and 6-pin L4 keyway cylinder with two nickel silver keys. Master keying and security keying options available. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and fast shipping.
Specifications
- ANSI/BHMA Grade 1 (ANSI 156.5)
- Deadbolt: 1-inch throw, solid steel with hardened free-spinning pin insert
- Door Thickness: 1-3/4 inches standard; optional sizes available
- Backset: 2-3/4 inches standard; 2-3/8 inches optional
- Front: Brass or stainless steel, 2-1/4 inches x 1-1/8 inches (1-inch width optional)
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted standard
- Strike: 2-3/4 inches x 1-1/8 inches standard
- Handing: Non-handed
- UL Listed for fire-rated doors
- Keying: Two nickel silver keys; master keying and security keying available
- Warranty: One-year limited
