Description

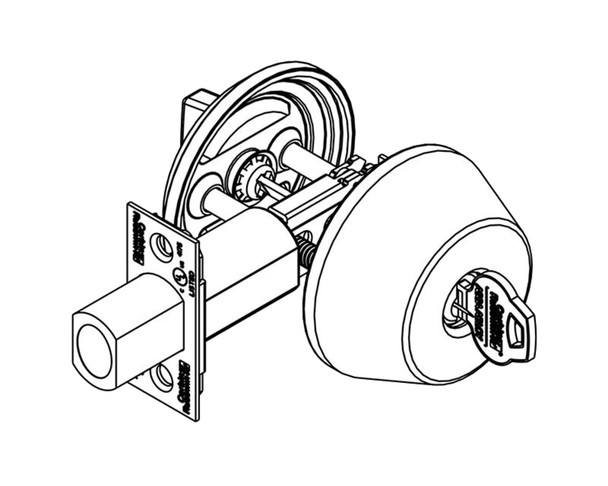

The Corbin Russwin DL3211 625 is a Grade 1 cylindrical deadlock built for high-security applications requiring reliable access control. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1-inch throw, this lock suits commercial doors, institutional facilities, and any entry demanding ANSI 156.5 Grade 1 certification and UL fire-rated door compatibility.
Standard 1-3/4-inch door thickness with optional thicknesses available; 2-3/4-inch or 2-3/8-inch backsets; brass or stainless steel front; and 6-pin L4 keyway cylinder. Master keying, security cylinders, and visual or concealed key control are available. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and keying assistance from an authorized Corbin Russwin dealer.
Specifications
- ANSI/BHMA 156.5 Grade 1 certified
- Deadbolt: 1-inch throw, solid steel with hardened free-spinning steel pin insert
- Standard door thickness: 1-3/4-inch (44mm)
- Standard backset: 2-3/4-inch (70mm); optional 2-3/8-inch (60mm)
- Front: brass or stainless steel, 2-1/4-inch (57mm) x 1-1/8-inch (29mm)
- Cylinder: brass, 6-pin, L4 keyway, 0-bitted standard; security cylinder optional
- Strike: standard 2-3/4-inch (70mm) x 1-1/8-inch (29mm)
- UL listed for fire-rated doors
- Non-handed installation
- Master keying and key control options available
- One-year limited warranty
