Description

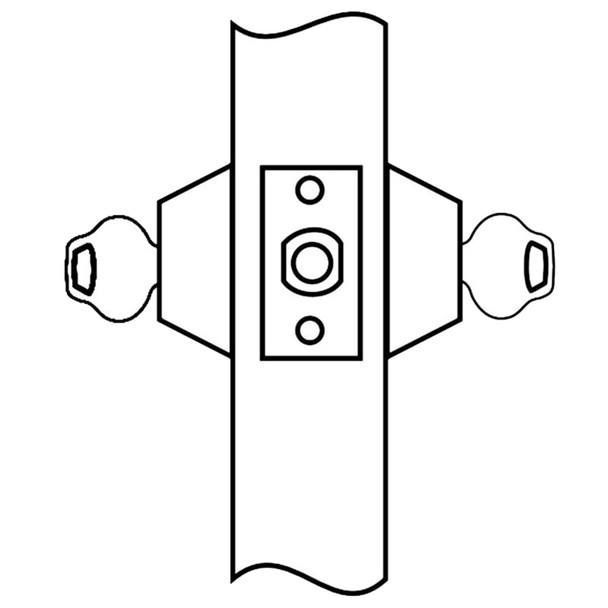

The Corbin Russwin DL3212 is a Grade 1 certified cylindrical deadlock engineered for high-security applications requiring maximum reliability. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1-inch throw, this deadlock is ideal for commercial facilities, institutional buildings, and other applications where ANSI 156.5 Grade 1 performance is mandatory.
Standard 1-3/4-inch door thickness with optional thicknesses available; backsets offered in 2-3/4-inch or 2-3/8-inch. This lock is non-handed and UL-listed for fire-rated doors. For expert keying assistance, master key system design, or compatibility questions, contact E.D. Locks & Security at sales@edlocks.com or 1-877-207-6067.
Specifications
- ANSI/BHMA Grade 1 (156.5 certified)
- Solid steel deadbolt with hardened, free-spinning steel pin insert
- 1-inch throw
- Door thickness: 1-3/4-inch standard (44mm); optional thicknesses available
- Backset: 2-3/4-inch (70mm) standard; 2-3/8-inch (60mm) optional
- Front: Brass or stainless steel, 2-1/4-inch x 1-1/8-inch; 1-inch width optional
- Strike: 2-3/4-inch x 1-1/8-inch standard; optional strikes and wrought boxes available
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted standard; security cylinder optional
- Non-handed
- Standard 161 door prep
- Pyramid cylinders optional
- UL listed for fire-rated doors
- Keys: Two nickel silver standard
- Master keying available
- One-year limited warranty
